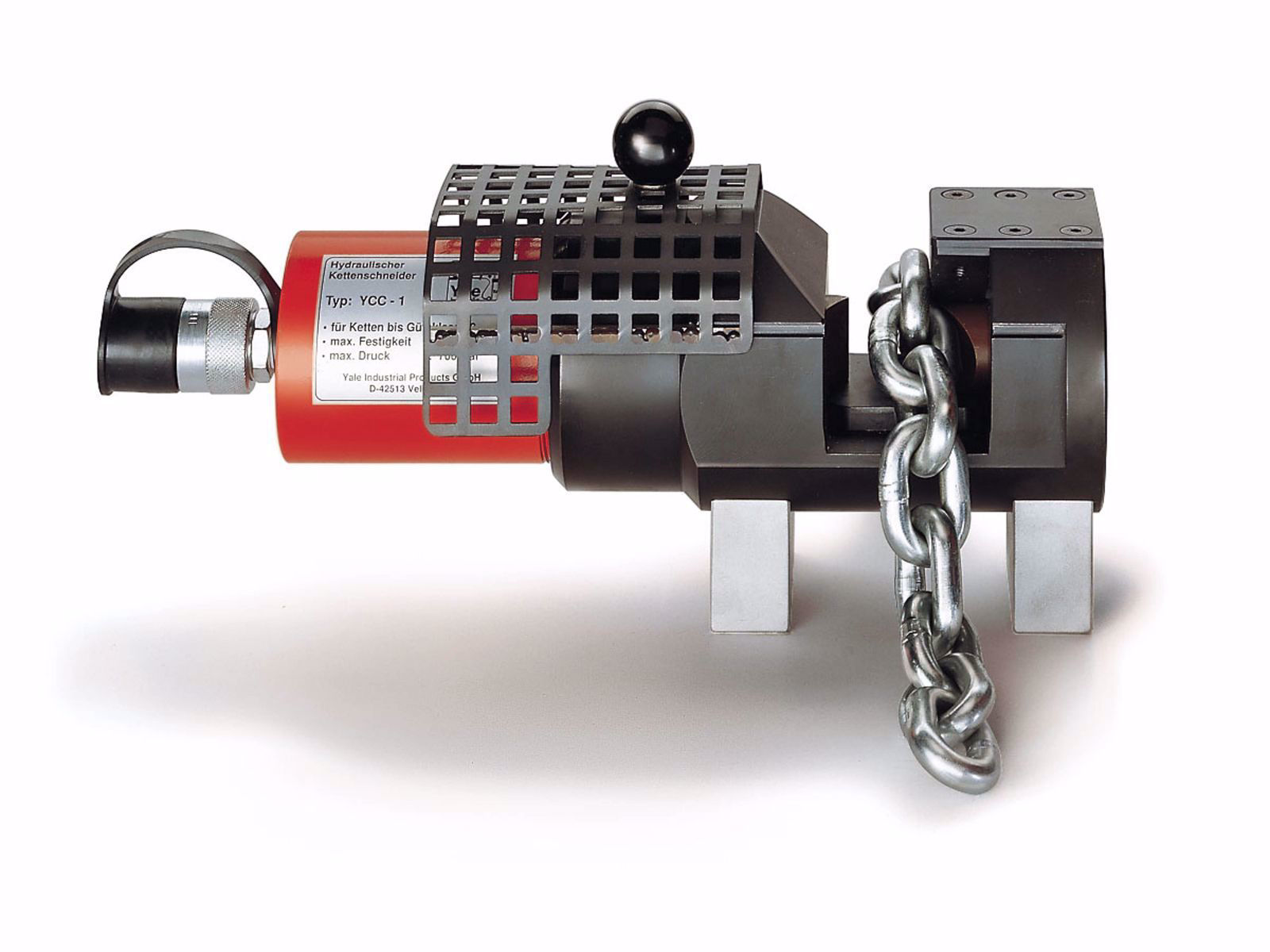

Yale YCC-201 Hydraulic Chain Cutter

This new and improved Yale hydraulic chain cutter, model YCC-201, is designed for safe and quick cutting of high-tensile chains up to 13mm diameter. It is suitable for grade 80 and grade 100 chains.

The cutting force is supplied by the standard single-acting cylinder model: YS-23/50

The return of the moveable blade is performed by the return spring of the hydraulic cylinder after relief of the hydraulic pressure. In combination with the PY-04/2/5/2M the blade returns automatically.

The chain cutter features two blades, a fixed blade and a moveable blade. Both blades are identical and can be interchanged as required.

The unit is also equipped with a unique chain support bar. This allows for perfect positioning of the chain link and leads to a much longer service life.

Reccomended Pumps:

• Air powered pump: PAY - 6

• Electric Power Pack: PY - 04/2/5/2M

• Hand Pump - HPS - 2/0.7

• Cordless Pump: PYB
