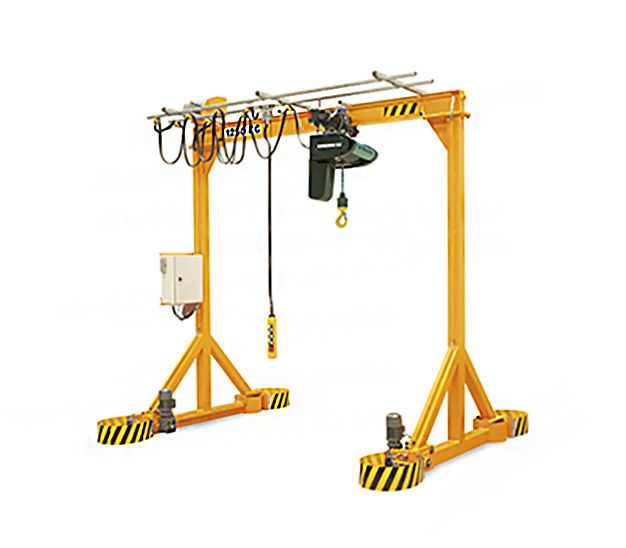

VGIM Steel Mobile Motorised/Powered Gantry
The VGIM steel motorised portable / mobile gantry is a unique, innovative product best suited to workshop operations for loads from 1,000kg to 6,300kg.
This steel gantry comes with a standard open profile beam and has been designed to accommodate a range of different manual and electric hoists.
- For indoor or outdoor use (on a smooth, clean floor)
- Motorised floor motion under load
- Supplied with I-profile beam
- Gantry can run on mains through cable reeling drum or can be battery powered
TECHNICAL INFORMATION
The VGIM Steel Mobile Motorised Gantry boasts the following technical characteristics:
- Safe working loads available: 1,000kg/1,600kg/2,000kg/3,200kg/5,000kg/6,300kg
- Spans available are 3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8/8.5/9/9.5/10 metres
- Heights to underside of 3/3.5/4/4.5/5/5.5/6 metres
- Two motorised polyurethane fixed wheels
- Steel welded construction
- Two non-motorised polyurethane fixed wheels
- Dual travelling speed 10mpm and 20mpm (with inverter)
- Suitable for indoor and outdoor use
- Two speed gantry rotation with switch on pendant
- Four anti-collision buffers
- RAL1028 mellon yellow polyurethane paint finish (3 layers)
- Maximum hoisting speed 16mpm
- Maximum hoist travelling speed 10mpm
- Low voltage control electrics (48V)
- Movable under load
