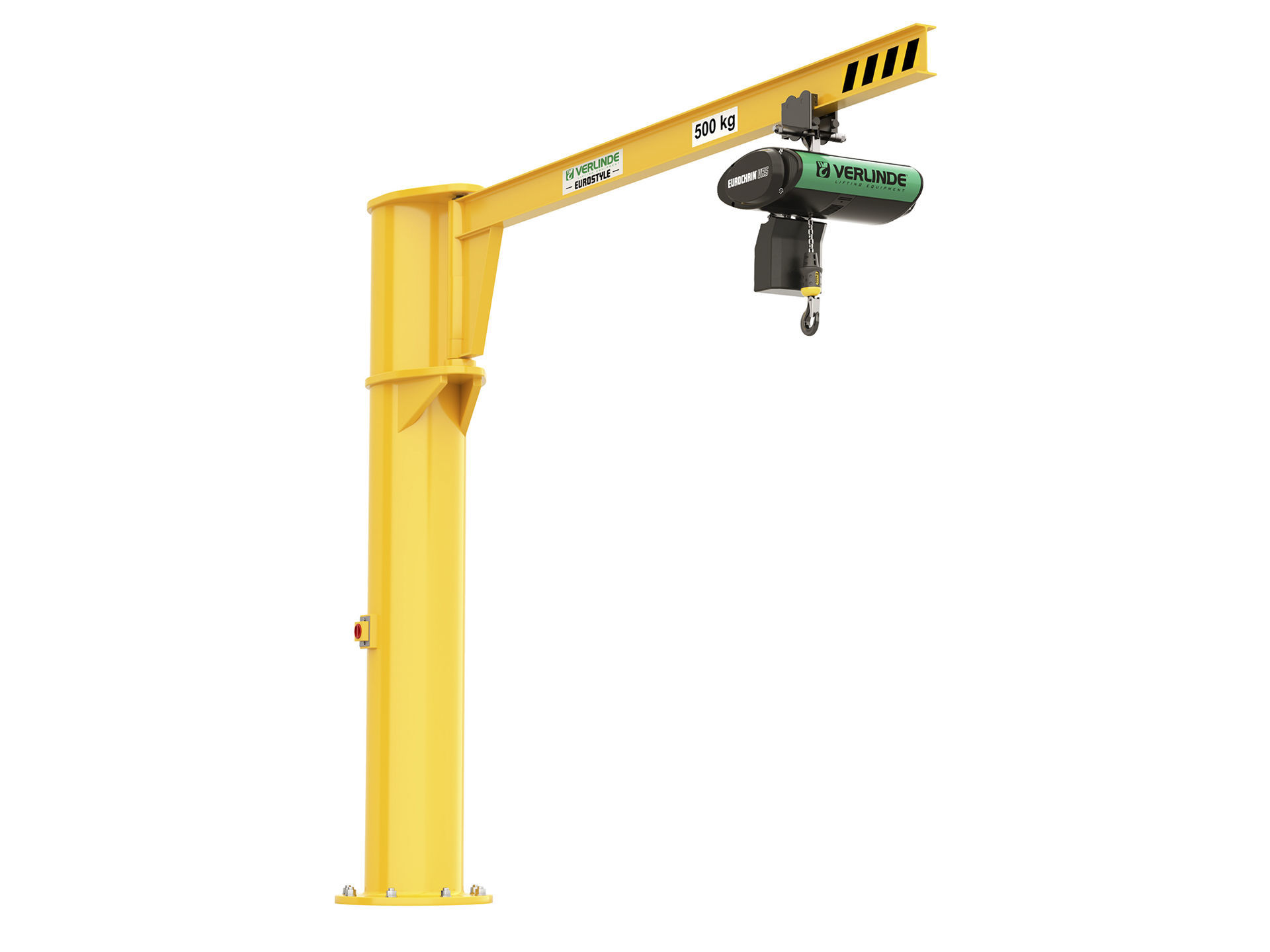

VFI Free Standing/Floor Mounted Underbraced Jib Crane (Profile Beam)
The VFI range of free standing jib cranes are manufactured with conventional profile beam arms which are suitable for standard hoist trolleys. Capable of handing loads from 125kg to 2,000kg the VFI Free Standing Underbraced Jib Crane with profile beam has a radius/span from 2 to 7 metres dependant on the load, and an arm clearance of up to 3 metres as standard, but can be supplied up to 4 meters.
Options available:
- Lockable main switch
- Most models available with large base for use with resin anchor bolts
- Installation template and cast in anchor rods
- Rotation slowing device
- Adjustable rotation stops
- Single or multi-position rotation lock
- Electric or manual hoist
Technical Information
The VFI Free Standing Underbraced Jib Crane (Profile Beam) technical features:
- Standard height to underside of beam of 3 metres and is available up to 4 metres upon request
- Jib crane with hollow-section pillar for indoor use
- 270° rotation, with overbraced jib arm
- This type of jib crane cannot be motorised
- Oversized base plate available to potentially alleviate the need for a foundation
- Polyurethane RAL1028 melon yellow painted finish
- Power supply cable provided if required
- Suitable for hoist with a maximum hoisting speed of 16mpm
