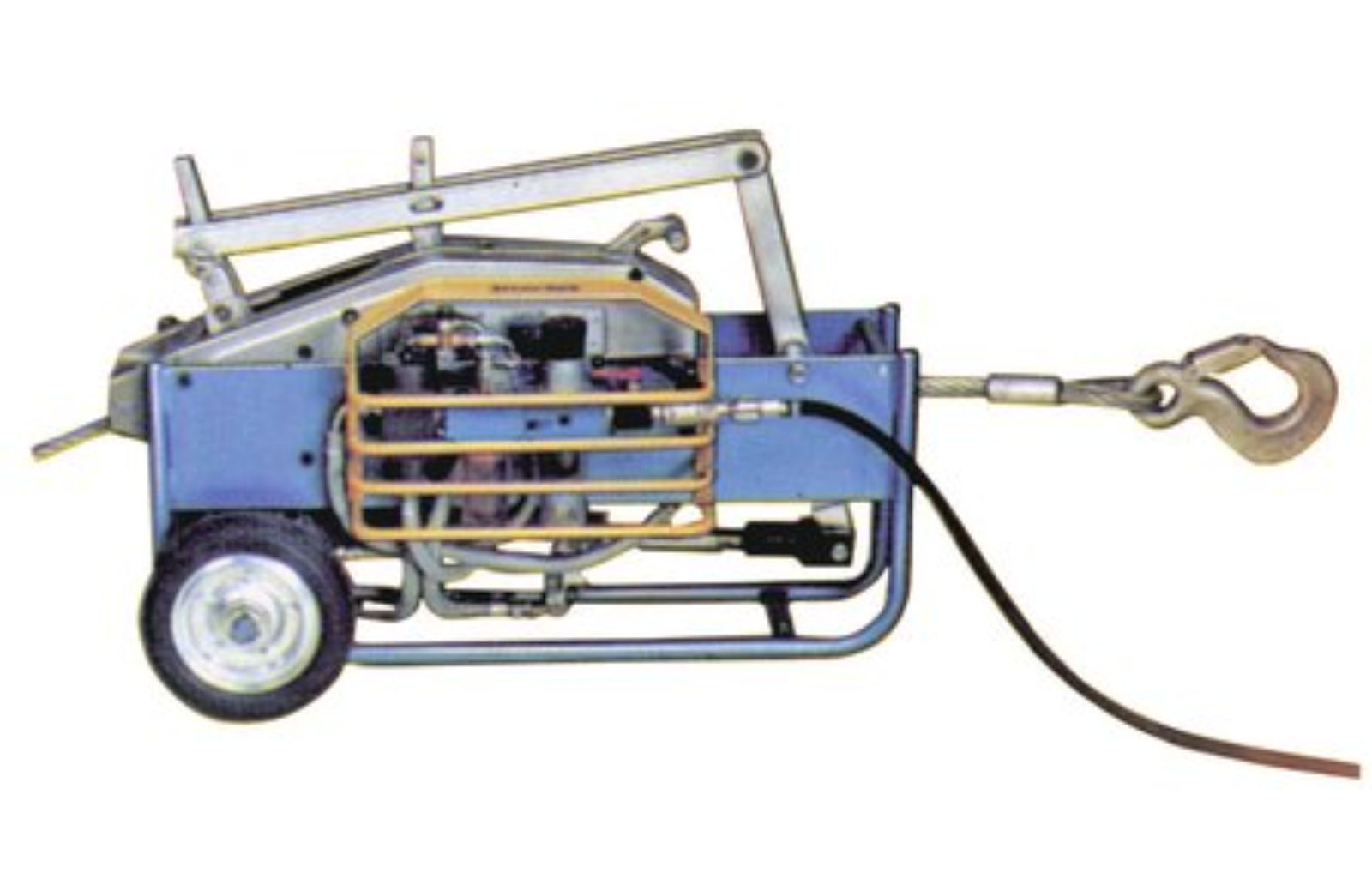

Tractel Tirfor TU-A Pneumatic Wire Rope Winch

The tirfor® TU-A16 and TU-A32 can be motorized by a pneumatic system powered by an onsite or portable air supply and is operated by a standard control unit.

The tirfor® TU-A series adds flexibility to the operator particularly during extensive heavy-duty usage and movement of loads over long distances.

If the air pressure is lost, the tirfor® can also be disconnected from the motorizing linkage and operated manually.

• Delivering safe and assured operation in any direction, either in a straight line or using diverter pulleys over an unlimited length

• Low-wear clamping jaws during demanding applications increasing the life of the wire rope

• Overload protection for safe and secure operation

• Fast and easy to install and use

• Working load can be increased by using sheave blocks

• Positioning loads with millimetre accuracy

• Secure release system

• Load capacity from 1600kg - 3200 kg

Please note that there are design differences between the TU-16P and the TU-32P.

These devices are purely for material applications and NOT man-riding purposes.
