Tractel Tirfor TU-H Hydraulic Wire Rope Hoists

The TU-H adds flexibility to the operator particularly during extensive heavy-duty usage and movement of loads over long distances.

Areas of application: maritime, building and industry.

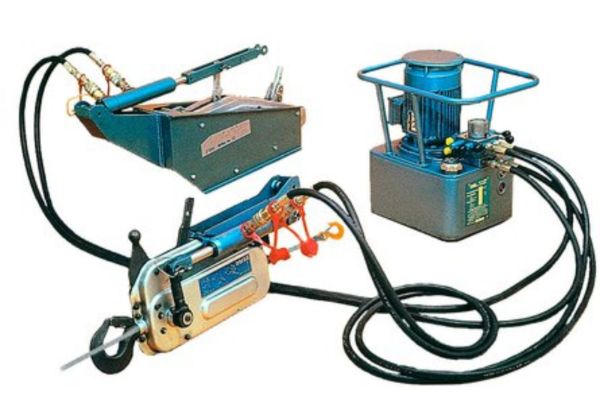

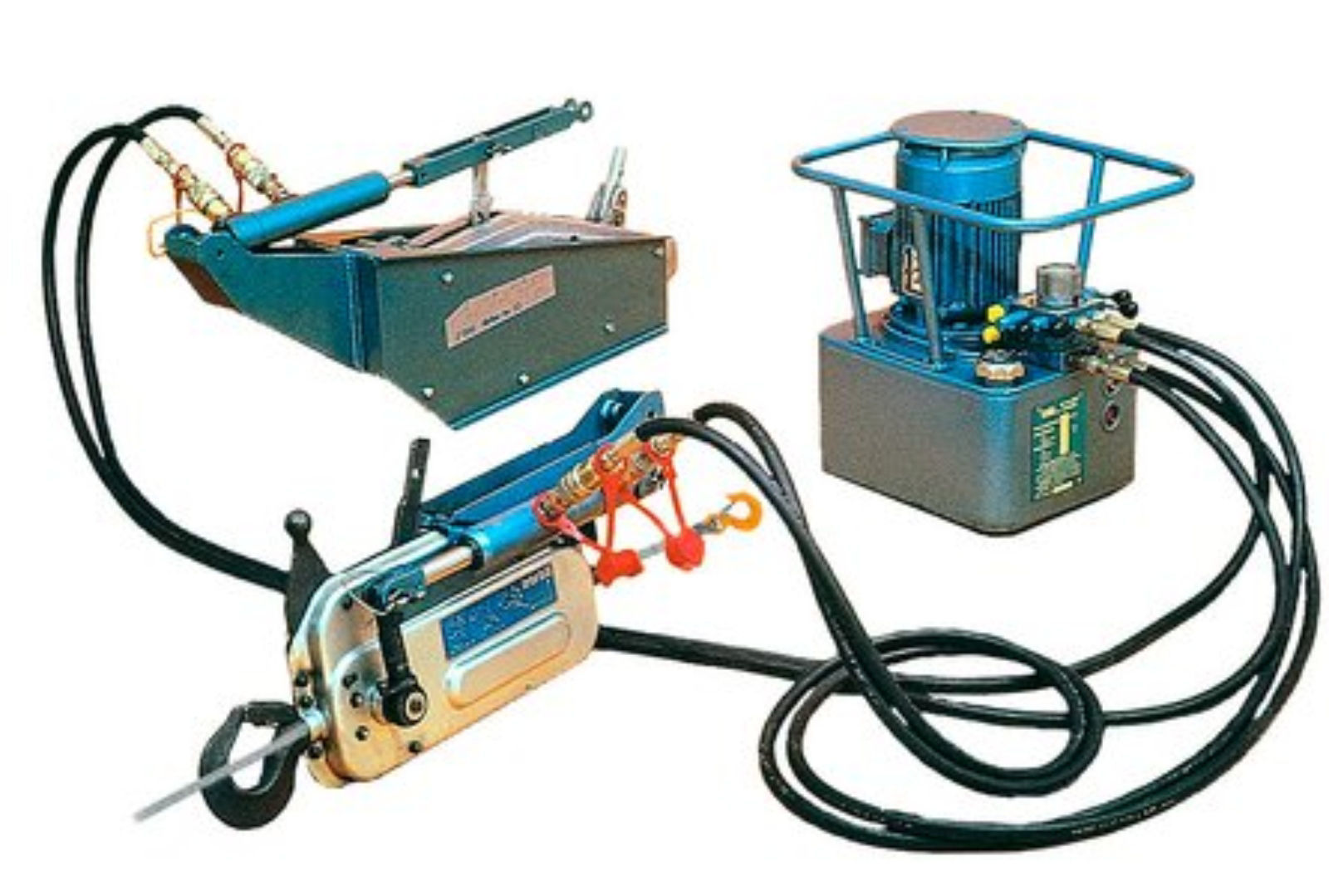

The complete set consists of a hydraulic powerpack, a 3 m long hose set with quick coupling and a tirfor® hoist with frame and cylinder.

TU-16H: The 1-way system is suitable for loads up to 1600kg. It can be expanded into a 4-way system which is suitable for loads up to 4 x 1600 kg.

TU-32H: The 1-way system is suitable for loads up to 3200kg. It can be expanded into a 4-way system which is suitable for loads up to 4 x 3200 kg.

• Delivering safe and assured operation in any direction, either in a straight line or using diverter pulleys over an unlimited length
• Low wear clamping jaws increase the life of the wire rope, even during demanding applications
• Overload protection for safe and secure operation
• Fast and easy to install and use
• Working load can be increased by using sheave blocks
• Positioning loads with millimetre accuracy
• Secure release system
