Tractel Mobifor Mobile Anchor Point

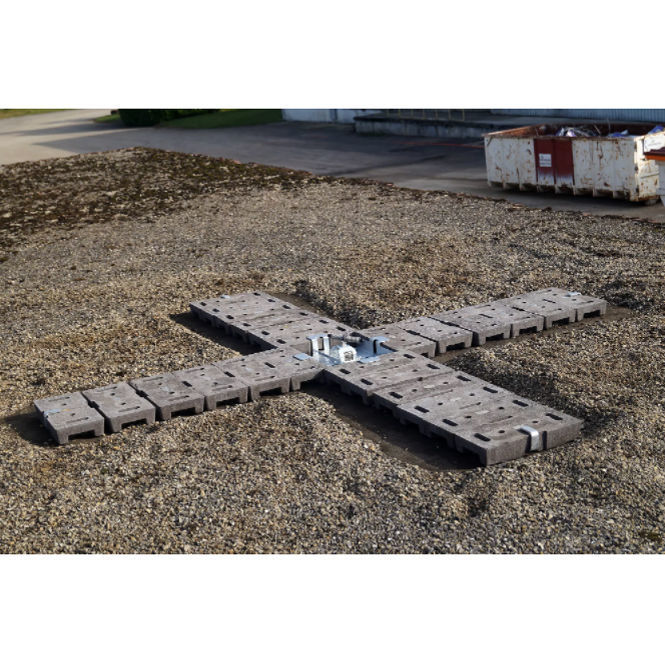

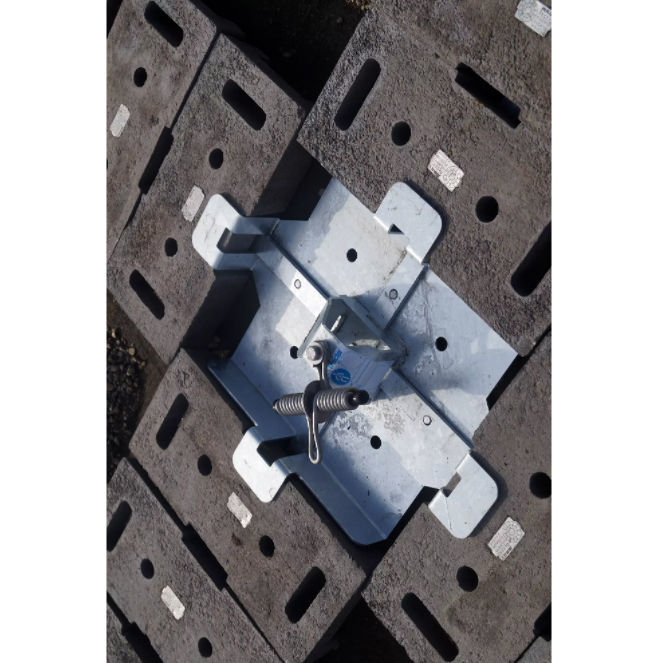

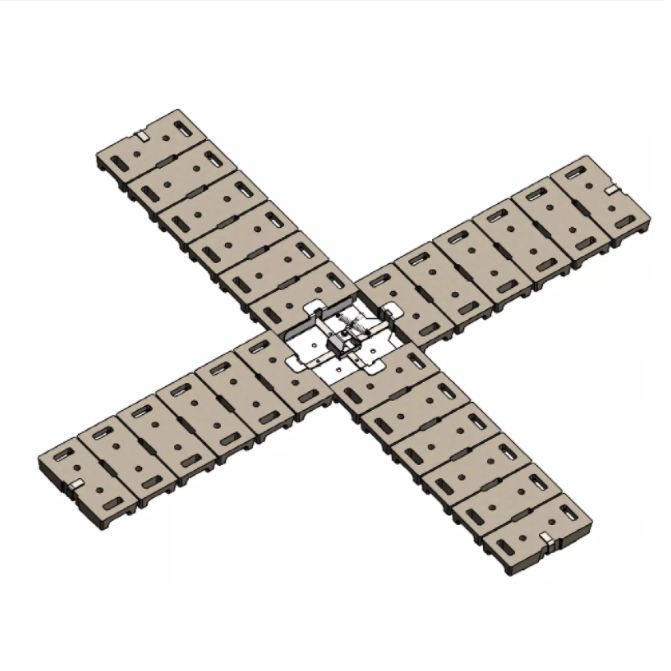

The mobifor^™ is a deadweight anchoring system, for installation on flat roofs and fall risk areas. The set consists of 24, steel-reinforced, concrete blocks, positioned on four steel arms. The arms are connected at the centre by a joining plate equipped with a rotary anchor point with an energy dissipater.

Specification:

• 4 arms made of galvanised steel.
• 24 concrete weights.
• Rotary anchor point.
• Conforms to standard EN 795 E /2012.



No Tools Required:

• The connecting plate is set up with no need to drill holes in the roof.
• The arms click easily into the plate.
• Weights automatically interlock.



Easy To Set Up:

• Takes less than 5 minutes to set up.
• The system uses ergonomic weights with large handles.
• Overall weight is distributed across 24 separate weights making it easy to lift and carry.
• The weights are easy to install on the arms.



Enhanced Fall Protection:

• 360 degree movement possible thanks to the rotary anchor point.
• Compatible with a variety of fall arrest devices.



Exremely Versatile:

• Adapts to all horizontal roofs meeting European requirements.
• Its weight and volume allows for installation in places where traditional anchoring systems cannot be installed.
• Can be placed on a slope with an inclination of up to 5 degrees.
• Can be installed without penetrating the roof surface.
• Can be installed on the following roof surfaces: EPDM, bitumen, PVC.
