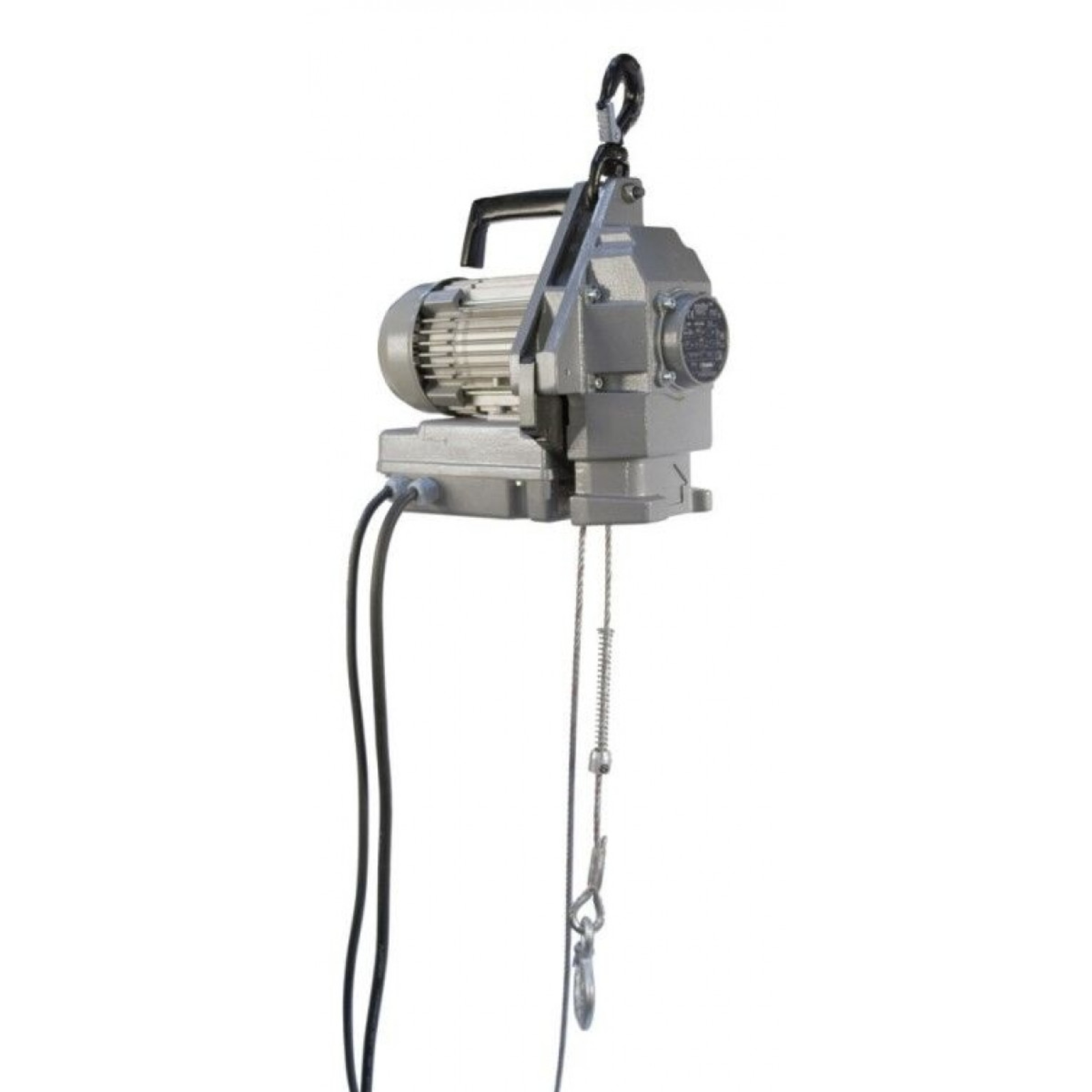

Tractel Minifor TR series Electric Wire Rope Hoists

The Minifor™ hoist is very compact, light-weight and easy to handle. Unlimited wire rope length and therefore unlimited lifting height. Available in various models. This hoist is not only suitable for lifting loads, but also for pulling loads in any direction. Operated by a control pendant (2.5 m cable, Up/Down/ Emergency Stop), which is supplied as standard. Power supply cable length 1 metre, with CEE Form connector.

• Unique lifting capacity/self-weight ratio

• Unlimited wire rope length

• Reliable and easy to use

• Working load can be increased by using sheaving kit

• Up and down limit switches

• Strong, robust and versatile (IP55)

The sheaving kit is used to double the lifting capacity of the minifor™.

• The lifting speed is halved

• Including 2 turning springs

Notes:

TR10 features 15 m/min Lifting Speeds

TR30 features 5 m/min Lifting Speeds

TR30S features 13 m/min Lifting Speeds

TR50 features 7 m/min Lifting Speeds

All models compatiable with 6.5mm Wire Rope

TR10 and TR30 are supplied in a metal storage box

TR30S and TR50 are supplied in a cardboard box
