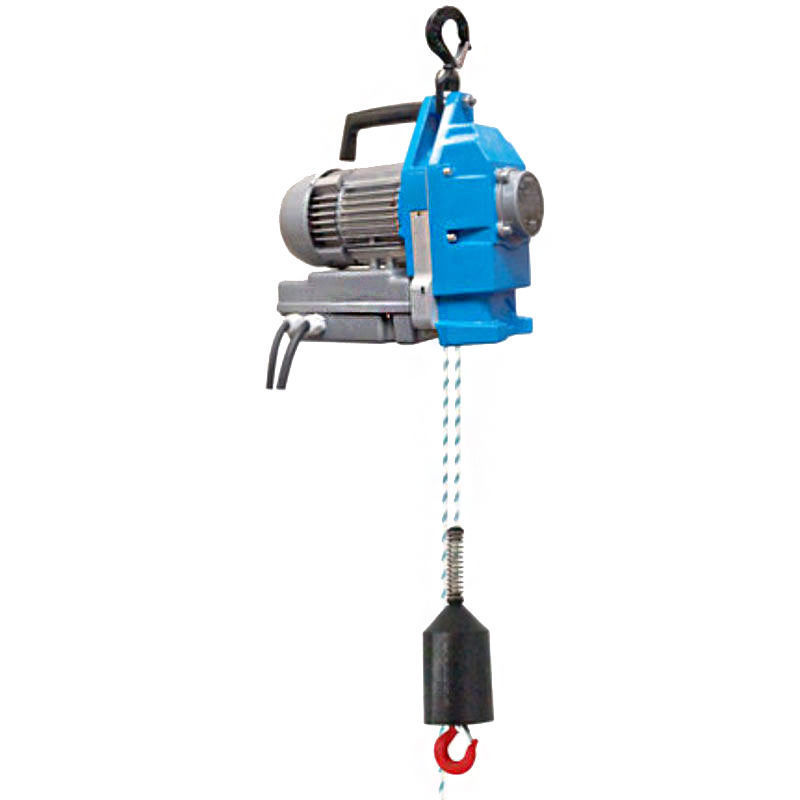

Tractel Minifor SY Series - Electric Kernmantle Rope Hoist

The Minifor® hoist has an extremely reliable drive system for a high speed
feed-through (30 m/min) of the loaded or unloaded rope.

The kernmantle rope is made of polyester and has a 9.4 mm diameter. Maximum length 200 m.

This rope has been developed especially for excellent performance, even if the rope shows signs of wear.

The rope can be identified by a blue braided cable. The rope core has a ribbon with a Tractel® marking.

3 options for how to be operated:

• A control pendant (2.5 m cable, Up/Down/Emergency Stop), which is supplied as standard.
• A removable plug-in control pendant (to be ordered separately) and an optional extension cable.
• With integrated 70m standard range radio control

Power supply cable length 1 metre, with CEE Form connector.

• Unique lifting capacity/self-weight ratio

• High speed (30 m/min)

• Kernmantle rope version

• Reliable and easy to use

• Working load can be increased by using sheaving kit

• Up and down limit switches

• Strong, robust and versatile (IP55)

All models listed feature a WLL of 125kg. Please refer to the below data sheet for model specifics not shown in the model drop down.

Model Specification Sheet

Various TR125 SY models are only available upon request. These are:

Wired Control Pendant   - 243999

Plug-in Control Pendant  - 245259, 245209

For more information please contact SGS directly on 0800 678 5708

TR125 SY Data Sheet
