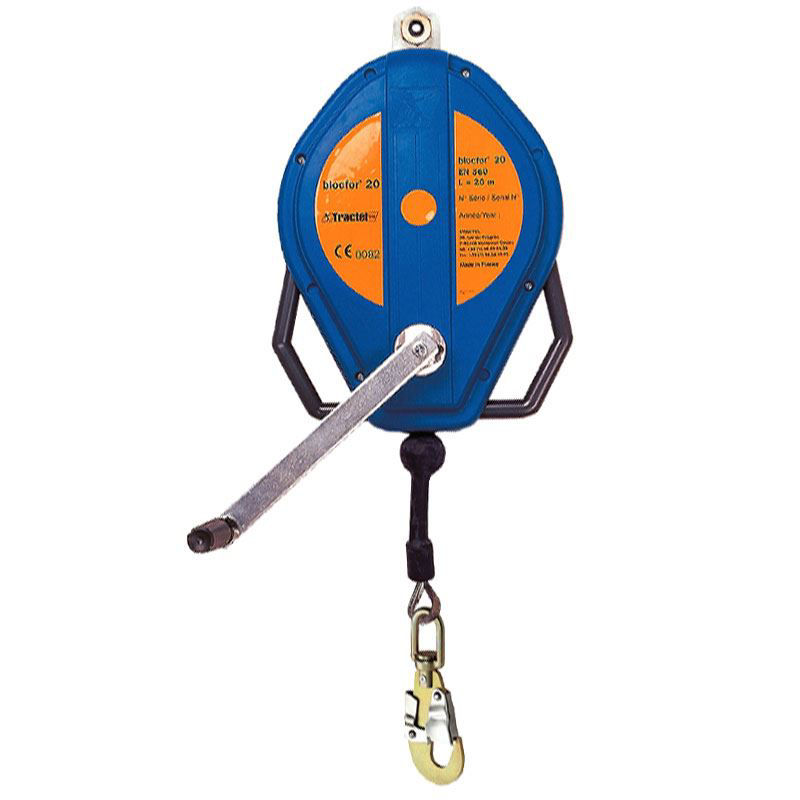

Tractel Blocfor R Fall Protection Device 20m/30m

• Automatic fall protection device with integrated winch for raising a casualty in an emergency. Integrated End System Dissipator (ESD) system ensures the user with an impact of less than 600 daN, even with a fall where the cable has been completely unwound. The ESD system protects the cable against the risks of rupture or failure which can be caused by the sharp edges found on terrace roofs.
• Available cable length 20 m or 30 m. Can be fitted to the trapcode 150 kg with a tractel® bracket



Characteristics:

• Width : 262 mm
• Height (mm) : 400 mm
• Thickness : 100 mm



Mechanical characteristics:

• Breaking strength : 15 kN
• Braking force : max. 6 kN
• Braking distance : 1 m
• Weight : 10,6 Kg



Materials:

• Housing : Polypropylène
• Galvanised wire rope : Ø 4,7 mm
• M46 Snap hook : Steel



CE certification:

• CE 0082/352/160/00/01/188ext 02/05/02
• Notified body : APAVE (N° 0082)



Standards:

• EN360 standard for fall arrest and the EN1496B standard for rescue lifting devices.
• CNB/P/11.060 : technical data sheet “use on terrace roof”
• CNB/P/11.062 : Fall arrest with a capacity of more than 100 kg
