Tractel Stopcable 150kg and Accessories

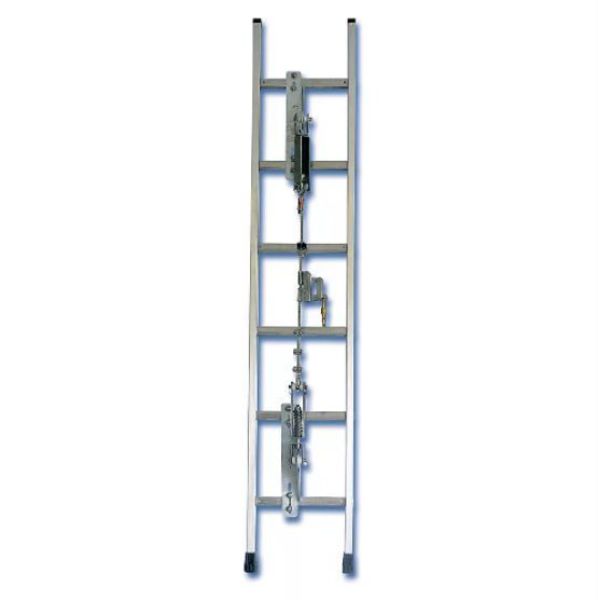

Stopcable 150kg

The use of a ladder to gainaccess to a high-levelworkstation can pose an elementof risk.

The purpose of the StopcableTM 150 kg system isto ensure the safety of personnel throughout theirascent.

The Stopcable vertical lifeline is a mobileanchoring device to enable a person to move on avertical axis in perfect safety and without havingto disconnect themselves. It consists of a fixedpoint and individual mobile equipment.

The Stopcable vertical lifeline was designed,created and tested to comply with therequirements of the EN353-1 and EN 353-2standards.

Cable

• Galvanized or stainlesssteel cable.
• Start kit: 3 m cablesupplied with swage onone side and 3 steelcable clamps.
• Add additional length permeter.

• Extra galvanised cable (25101) is £4.8 per metre
• Extra stainless steel cable (25091 is £10.50 per metre
• Please contact SGS directly if you require extra cable length

U bolt

The jumpers or stirrups enable the
connection of the anchor terminals
and the cable guides to the ladder
rungs.

• Material: Stainless steel

Shock absorber

• Material: stainless steel clevis pin,
• PU shock absorber.

Cable Guide

To be installed approximately every 10m. The purpose of the cableguide is to restrict cable play.

• Material: stainless steel and rubber.

Tensioning Device/Counterweight

Spring tensioning device.

• Material: stainlesssteel clevis pin, pre-tension indicator.
• Counterweight (should be used at the bottom end ofthe installation, if this end is not fixed onto the ladder)

Fall prevention device

Fall arrester with shock absorber.

• Anti-reversibility system
• Supplied with M10 connector
• Absorber webbing strap
• Material: Stainless steel

Anchor point

Top and bottom anchor point.

• Material: Galvanized steel or stainless steel
• 2 models:
• H - Horizontal support
• V - Vertical support

Signpost

Informational signpost for the Tractel Stopcable system, including safety information and areas to write important information such as installation date, number of users and date of next inspection.
