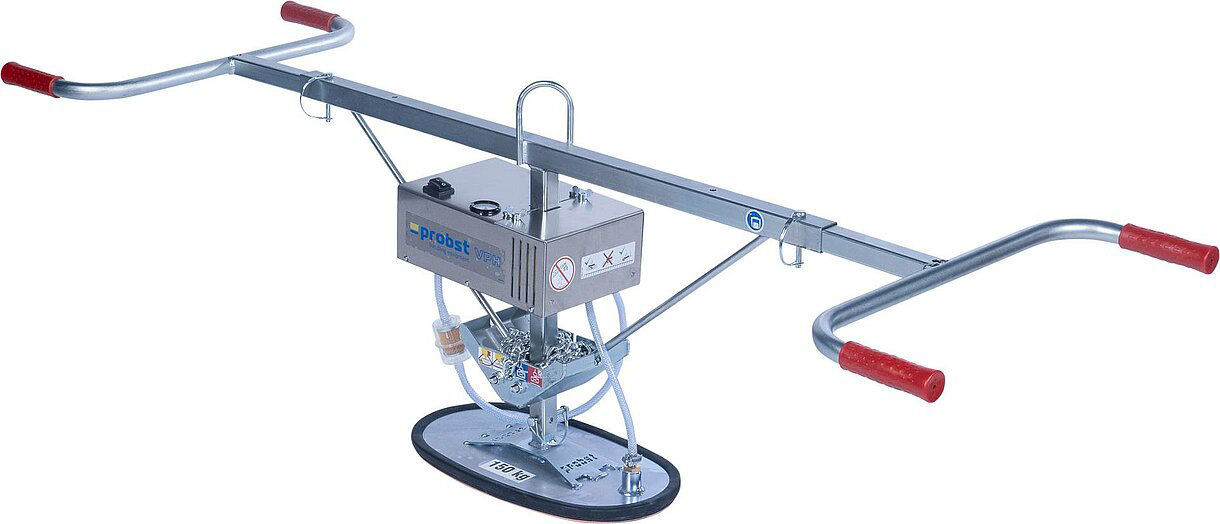

Probst Vacuum-Power-Handy VPH-150-Greenline

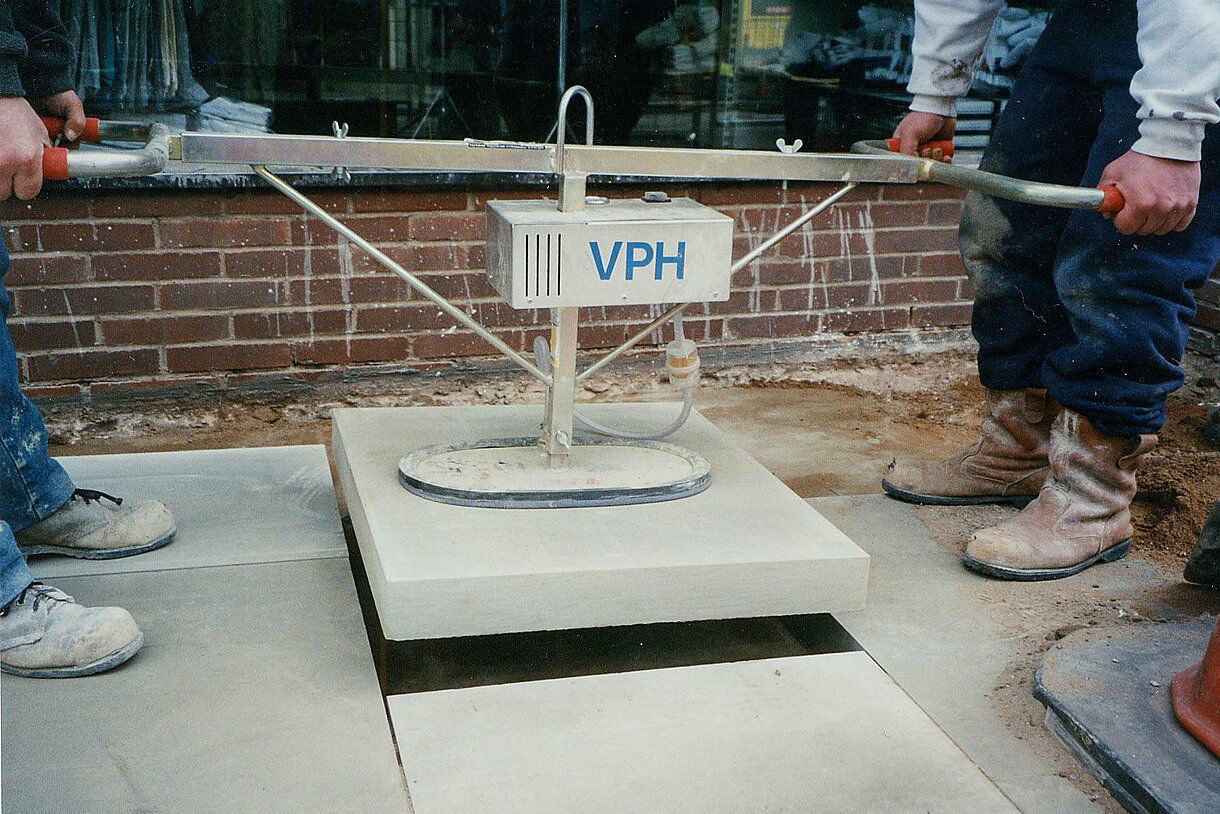

A Flexible and powerful hand operated laying device for dense products, such as granite or high quality concrete elements.

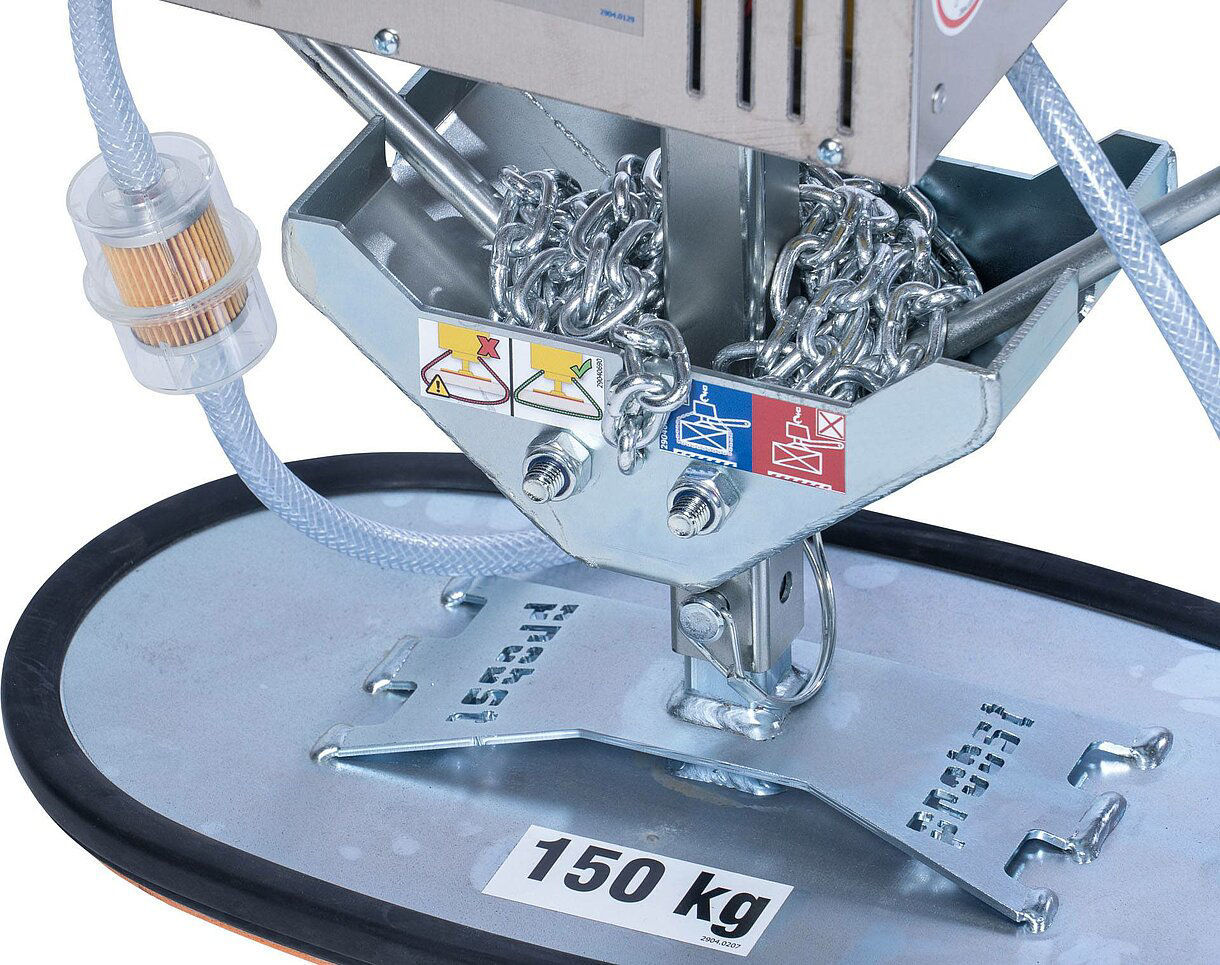

Special seal, consisting of 2 components for optimised sealing. Even when the suction plate is sitting on sharp edges for a long time, no permanent marks are left in the seal. Therefore no “foldable rests” are necessary to save guard the seal. Wheel Set VPH-RS can be retrofitted to any VPH device at any time. Thus dense slabs can be installed by just one person.

• Powered by rechargeable battery 12 V. Special energy saving automatic allows a full day of laying operation without the need of recharging. Battery charger not included.

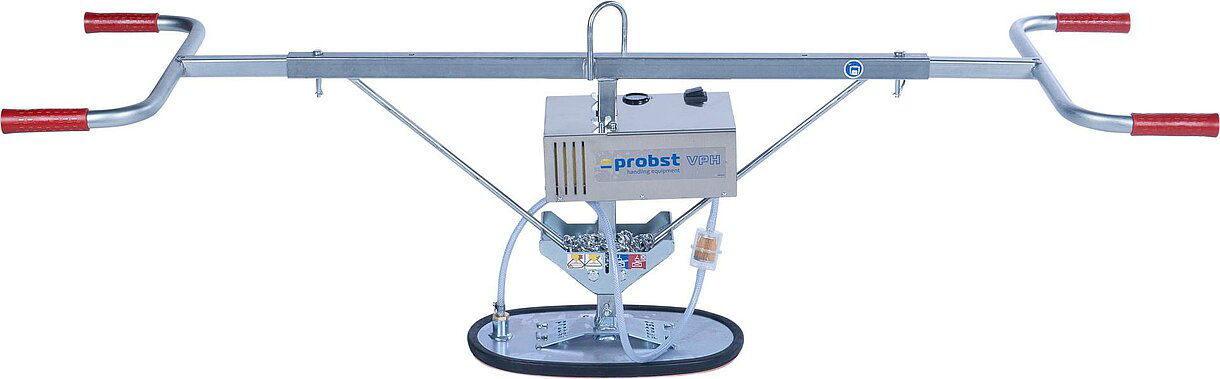

• Handle for 2 men operation, handles are height and width adjustable to accomodate with different laying tasks.
• Vacuum pump unit with manometer and battery charging indicator.
• The seal can be exchanged without glue and any tool within 1 minute.
• Fitted as standard with chain compartment and load securing chain as well as lifting eye for hoist operation.
• Durable surface protection by galvanizing

Dimensions oval, LxB, mm(in): 440x250 (17¼ x 9¾")

Type of Drive electric/Battery, kW: 0.02

Working voltage, V: 12

Weight Dead Weight, kg(lbs): 16.5 (35)

Working Load Limit WLL -500 mbar, kg (lbs): 150 (330)

Battery capacity, Ah: 6.5

Data Sheet
