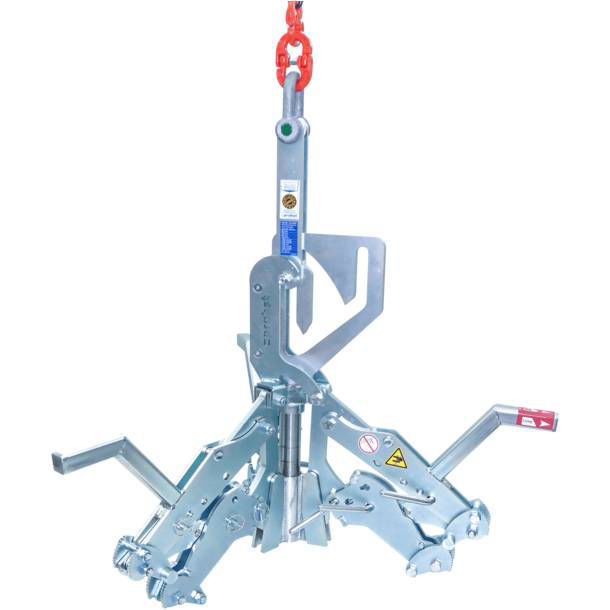

Probst Manhole and cone installation clamp SVZ-UNI-UK

This universal manhole and cone clamp SVZ-UNI enormously rationalizes transport and installation of manhole elements.

Especially suitable for manhole bases, rings (height 500 mm/19¾ inch or larger) and cones with inner diameters of:

900/1.000/1.050/1.200/1.250/1.350/1.500 mm.
(28½/31½) 35½/39½/41¼/47¼/49¼/53¼/59 inch).

• With additional suspension position for a more horizontal hanging of the cones.
• An additional operator is not necessary as the driver of the lifting machine „switches“ the SVZ-UNI from gripping to releasing by a slight movement of the lifting hook.
• The settings to the required diameters of the products is done very quickly through plug bolts. A rearrangement of the settings is not necessary when handling manhole rings and cones, as the SVZ-UNI has got two gripping levels.
• Efficient and economic handling of all kinds of manhole elements.
• High tensile chain suspension with eyelet.
• Durable surface protection by galvanizing.

Nominal Diameter, mm: 900-1500

Dead Weight, kg: 96

Working Load Limit WLL, kg: 2500
