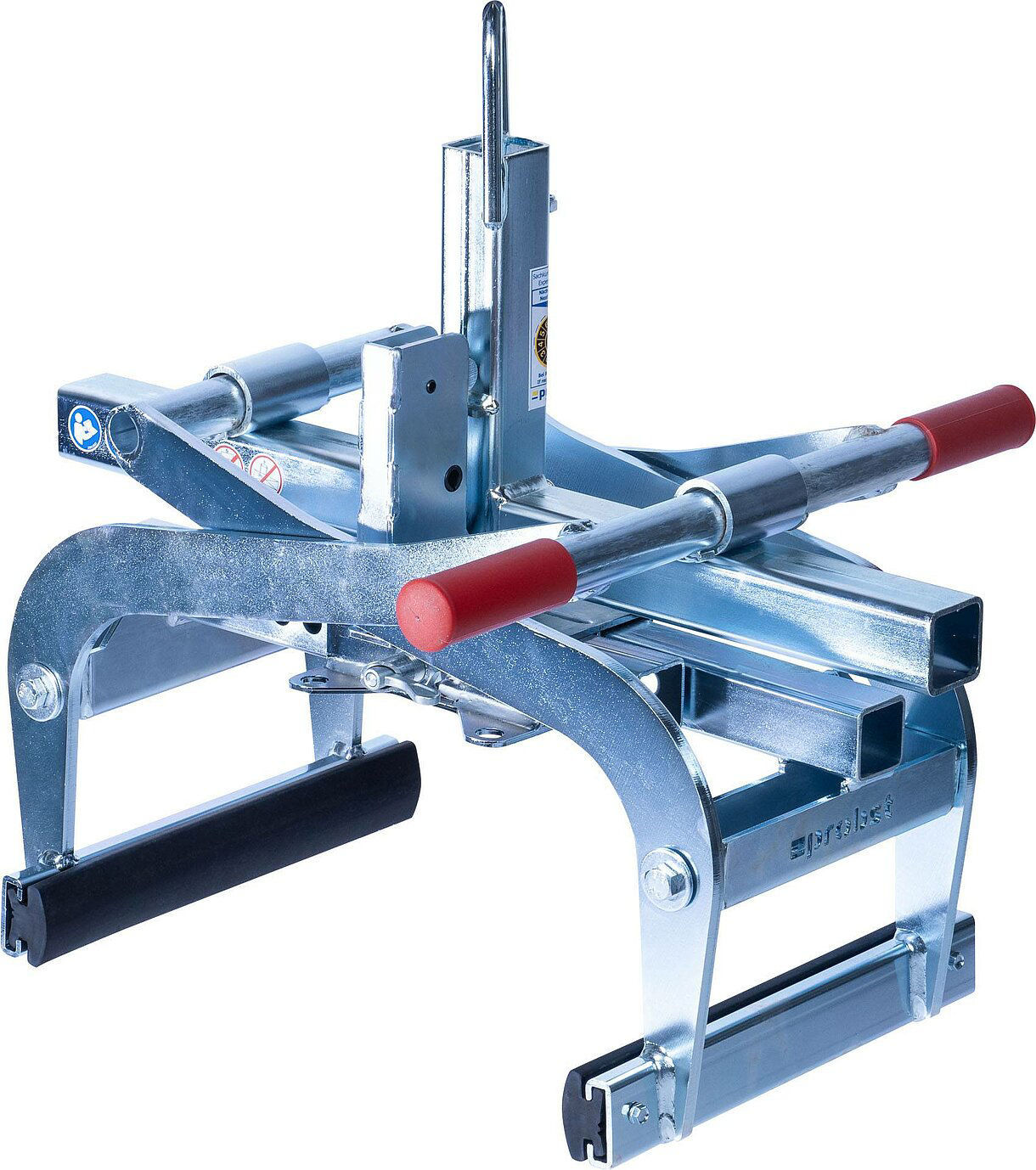

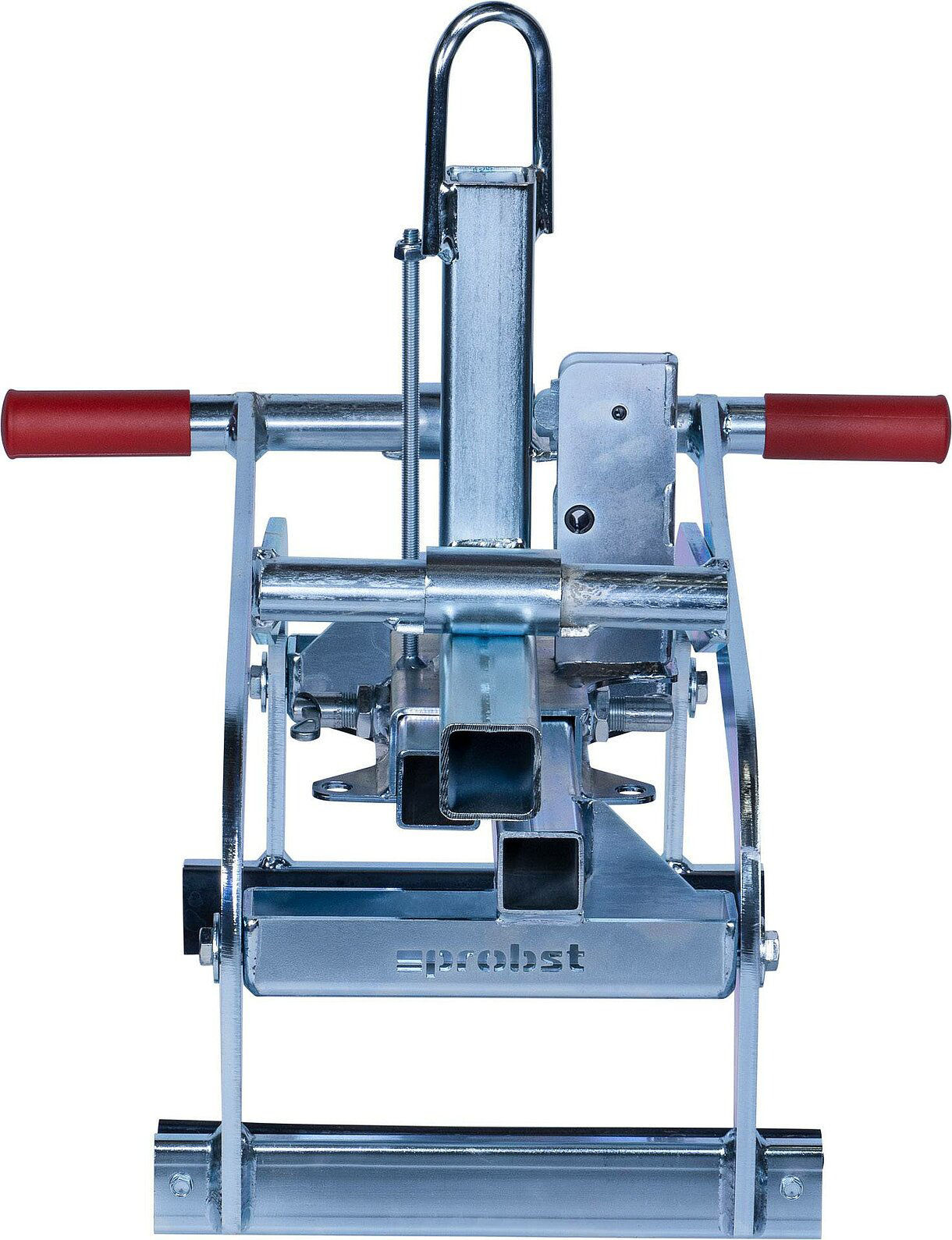

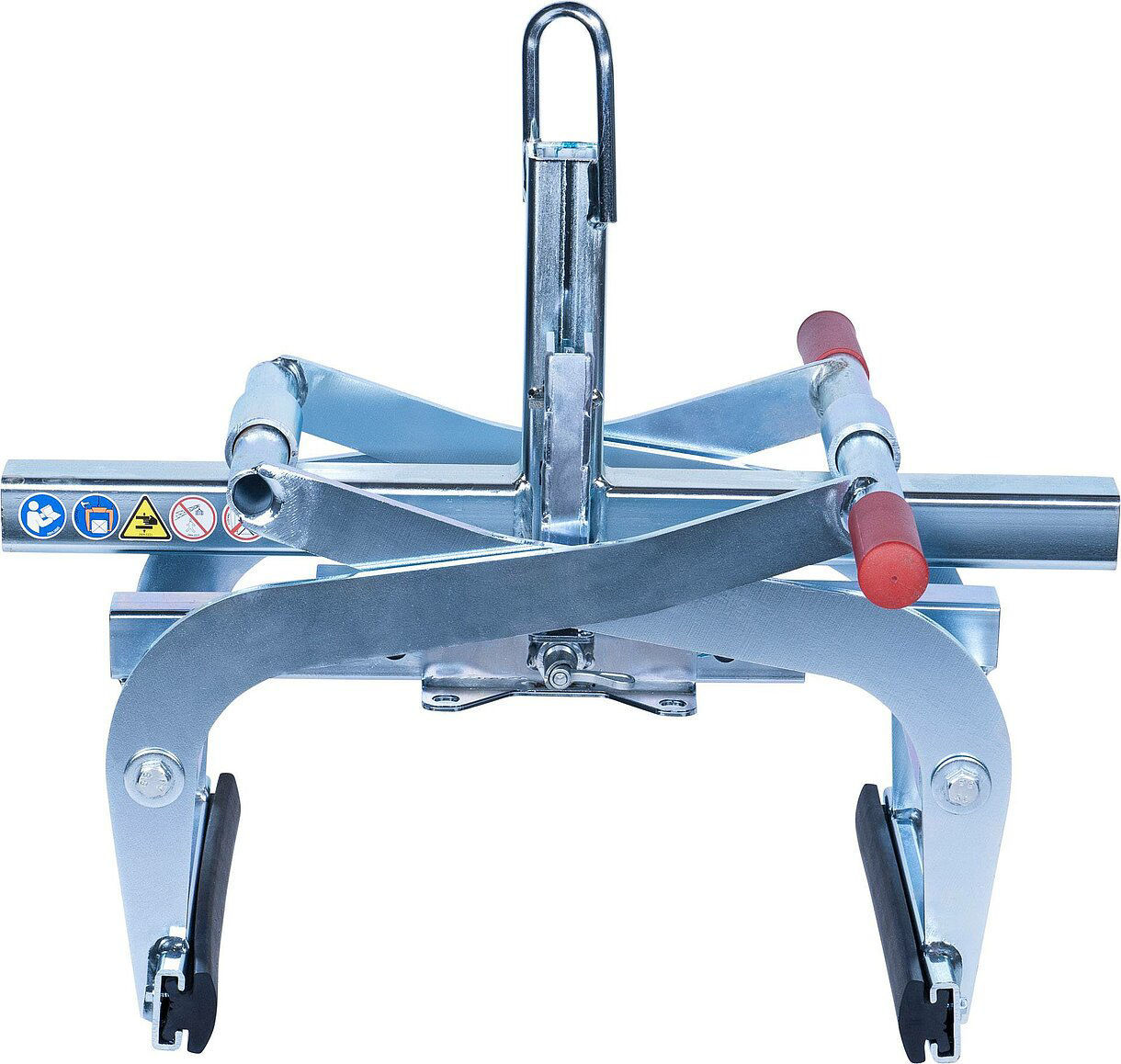

Probst Concrete Step Handles TSZ-UNI

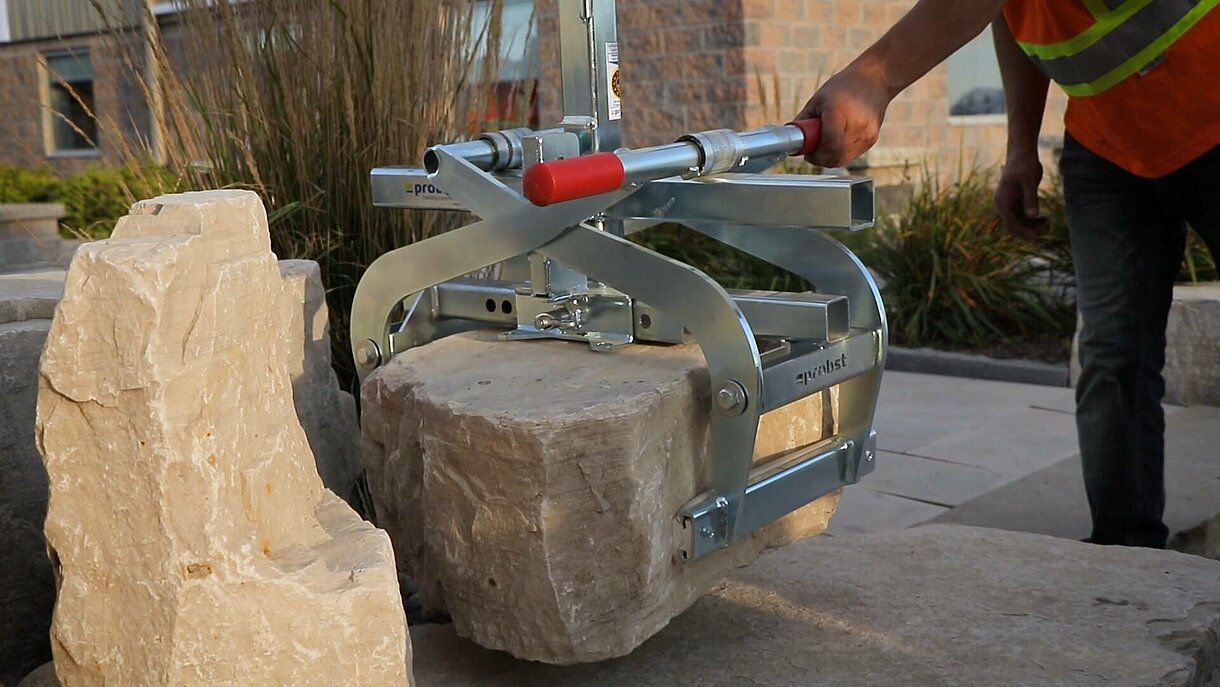

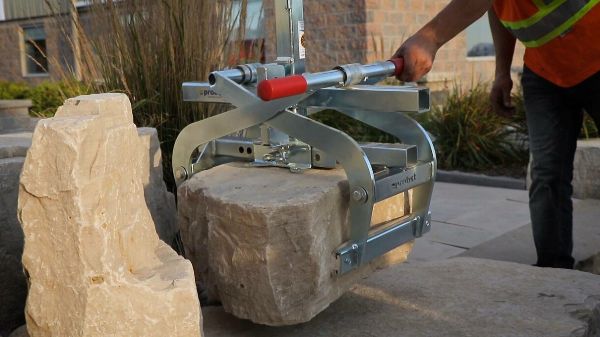

Much more than a step handle, the Concrete Step Handles TSZ-Uni is suitable for handling steps, kerb stones etc. in conjunction with a lifting device.

• Easily adjustable opening width by means of a spring-loaded bolt.
• Considerable inside height. Conical kerb stones are also gripped securely, as the gripper has an inside height of 185 mm (7¼ inch) thus being able to grip underneath the conical form.
• Lifting eye for attaching to crane hook.
• Automatic release for fully automatic switch-over from “full” to “empty”.
• Exchangeable profiled rubber seals.
• Galvanised finish.

Length of Gripper, mm (in): 350 (13¾")

Gripping Range, mm (in): 50-600 (2-23½")

Weight of Dead Weight, kg (lbs): 32 (70)

Inside Height, mm (in): 185 (7¼")

Working Load Limit WLL, kg (lbs): 800 Kg

Data Sheet
