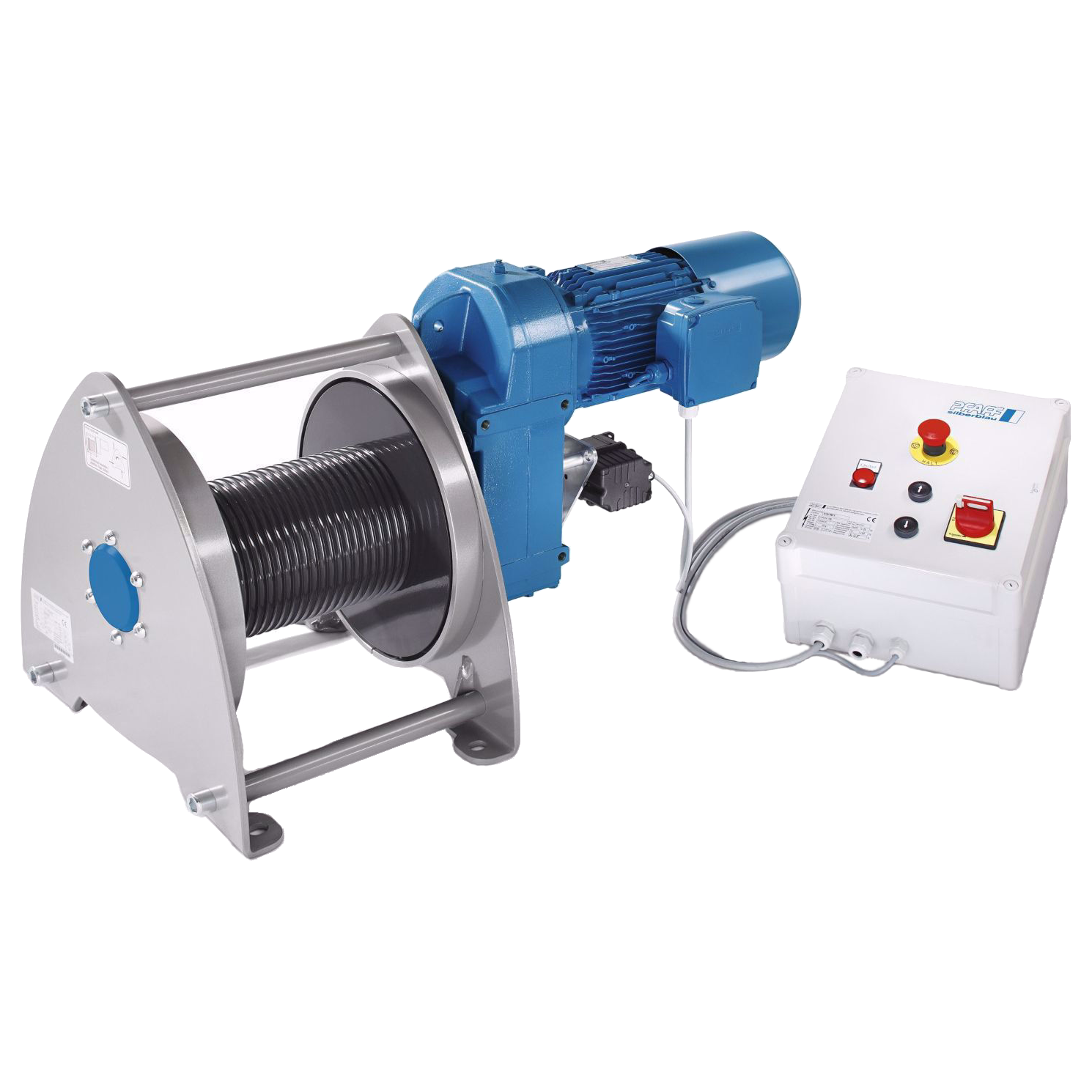

Pfaff Beta SL1 Electric Wire Rope Winches - With Control Pendant or Frequency Converter

Short times to delivery are followed by long periods in operation: the electric wire rope winch BETA SL in its standard design works permanently reliably due to enclosed worm gear pairs or spur gears with high-quality brake motors.

The electric wire rope winches BETA SL are available with a contactor control system including a gear limit switch.

Features and benefits:

• Maintenance-free worm gear pairs or low-maintenance spur gear with milled and ground gears - running in oil bath

• Very quiet running by diagonal interlock

• Electrically released spring-applied disk brake

• According to the accident prevention provisions BGV D8

• Range of temperature: -20°C – +40°C

• Powerful three-phase motor for multi-range voltage 380 – 420V / 50Hz or 440 – 460 V / 60Hz • Electronic overload protection as of 1000kg lifting load

• Range of temperature: -20°C – +40°C

• Duty ratio S3 – 40%

• Motor protection type IP55

• Grooved rope drum

• Large wire rope capacity

• Contactor control 42V

• Gear limit switch

Notes:

All Pfaff winches are supplied WITHOUT wire rope

Recommended rope: DIN 3069 FE-znk-1960 sZ-spa
