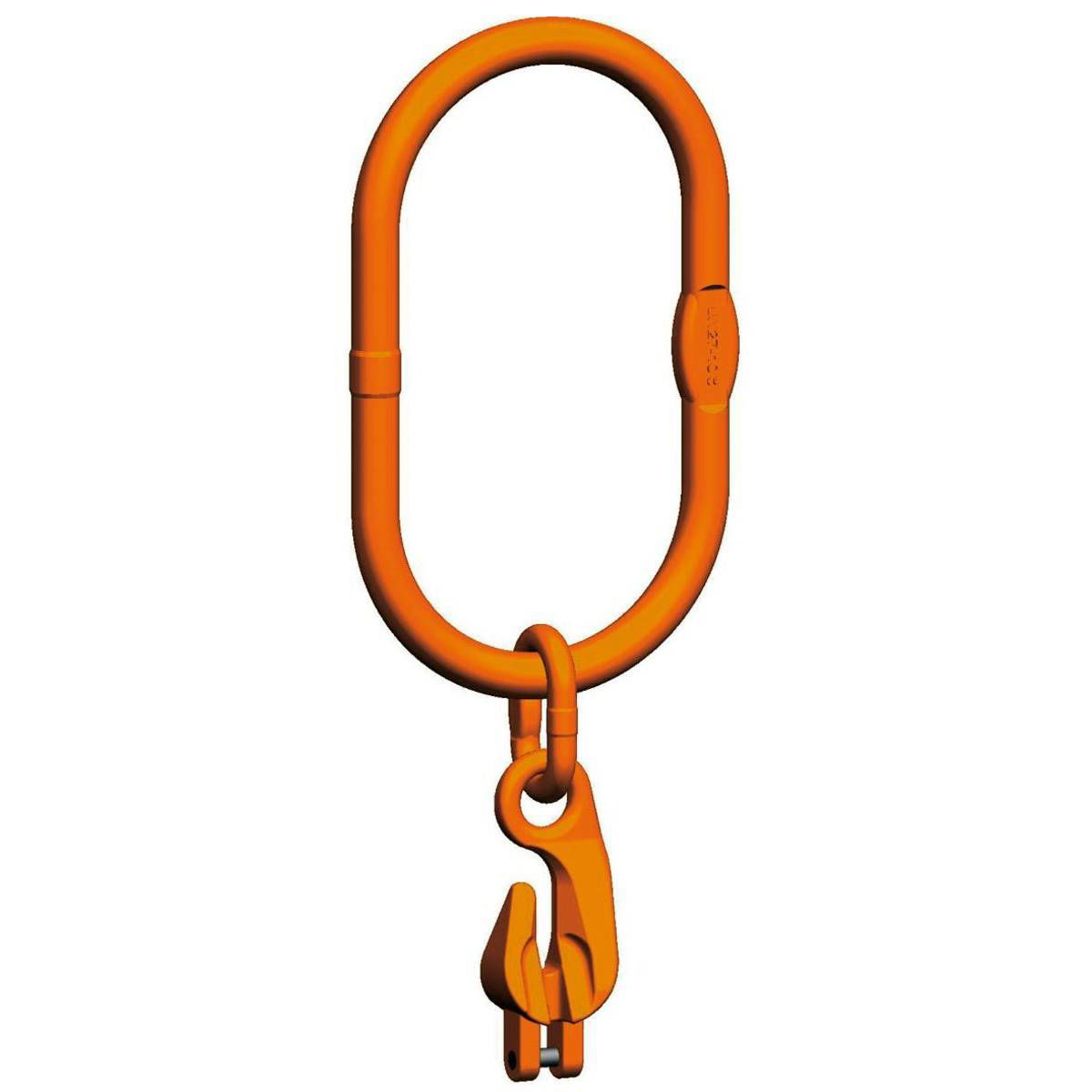

PEWAG 6mm winner Grade 10 Oversized Clevis Master Link Set with Shortener(single leg)

This oversize clevis master set is frequently used on mobile cranes. It consists of an LW master ring and a welded-in XKW shortening hook for the creation of I-leg chain slings in the assembled system. The chain is mounted directly into the captive coupling of the shortening element, thereby eliminating the need for an additional connecting link. Assembly and disassembly of the system by a competent person is easy and quick, without the need for special tools. The hook functions both as a connecting link and a shortening element and the master link is suitable for crane hooks up to no. 25 according to DIN 15401 and up to no. 32 according to DIN 15402.

The set is manufactured according to EN 818‑4 with the mechanical values of G10, comes with CE-marking and BG-approval as well as a full operating manual.

The coupling pin and the lock pin are available as a KBSW spare parts set.
