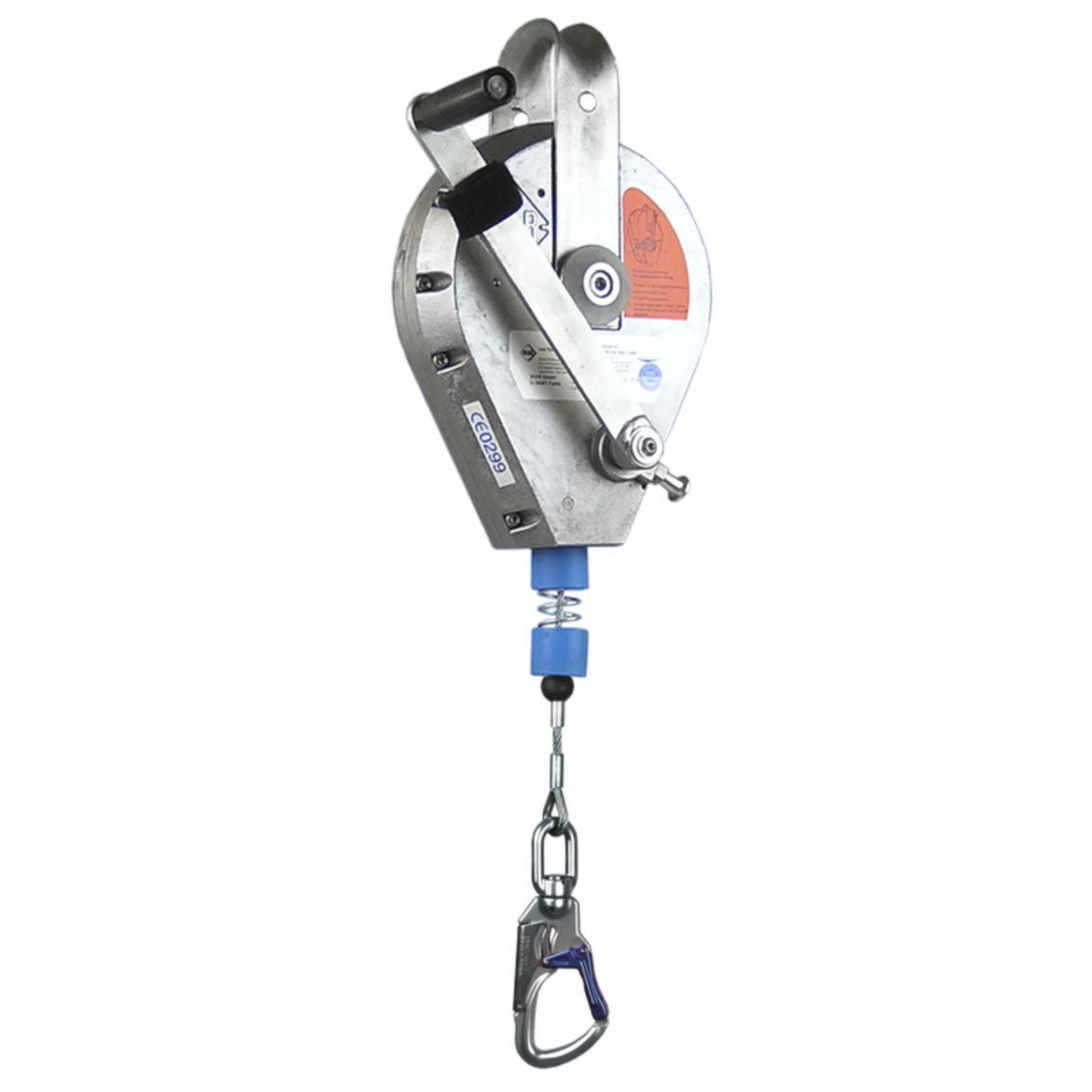

Ikar HRA18S30 Inertia Reel with Chain Driven Recovery Function 18m

Fall Arrest Block / Inertia Reel / Retractable Type Fall Arrester, with built in two-way chain driven rescue / Recovery Mechanism

• Length: 18m Lifeline
• Weight: 14.5kg
• EN360
• Aluminium housing, with a galvanised steel cable lifeline
• With release cord and two-way chain drive, to engage rescue/recovery mode
• Fixed handle anchor attachment point
• Attachment/connection handle or can be fitted to a davit or tripod via a bracket
• Aluminium double action hook on end of lifeline to EN362


Fall arrest devices with rescue lifting and lowering facility are equipped with a recovery mechanism operated by a chain drive. After an arrested fall, or if the user becomes incapacitated at the bottom of a shaft, the recovery mechanism can easily be engaged by a second person to raise or lower the person to a place of safety.

The chain operated drive enables easy use of the recovery mechanism in the HRA device, even if the anchorage point of the device is located in a very high position. The HRA is not suitable for use over a leading edge and has not been edge tested.
