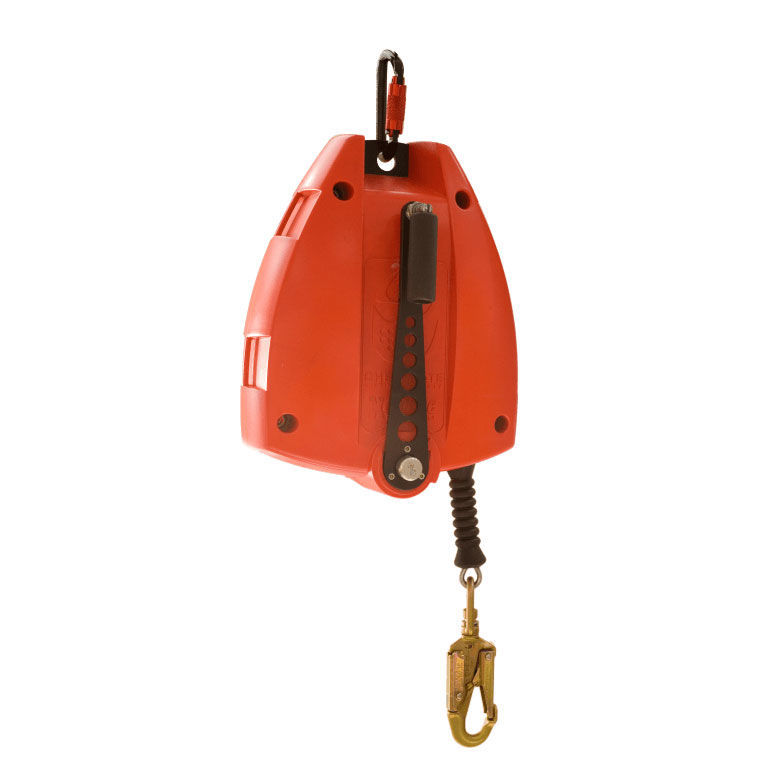

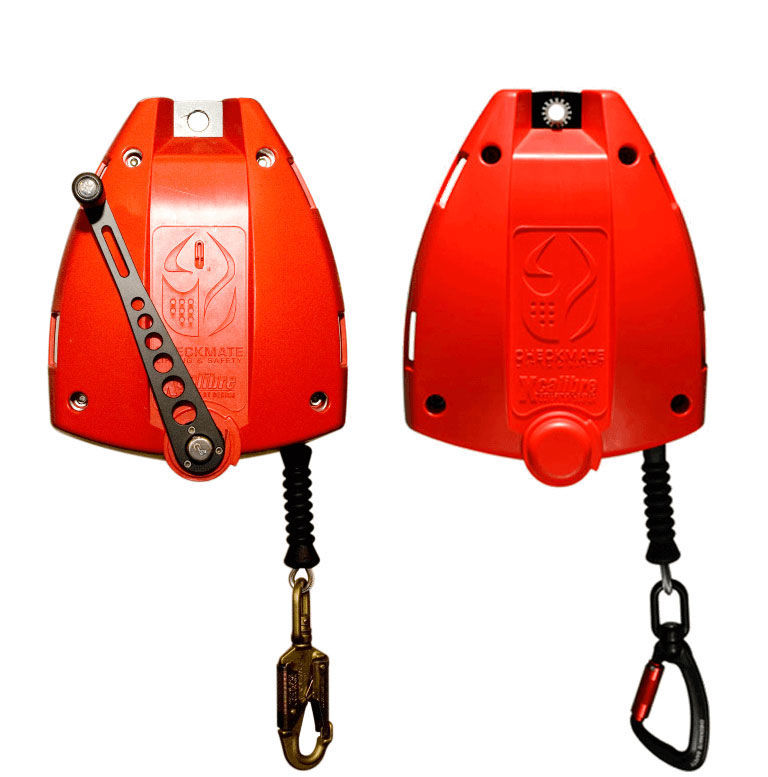

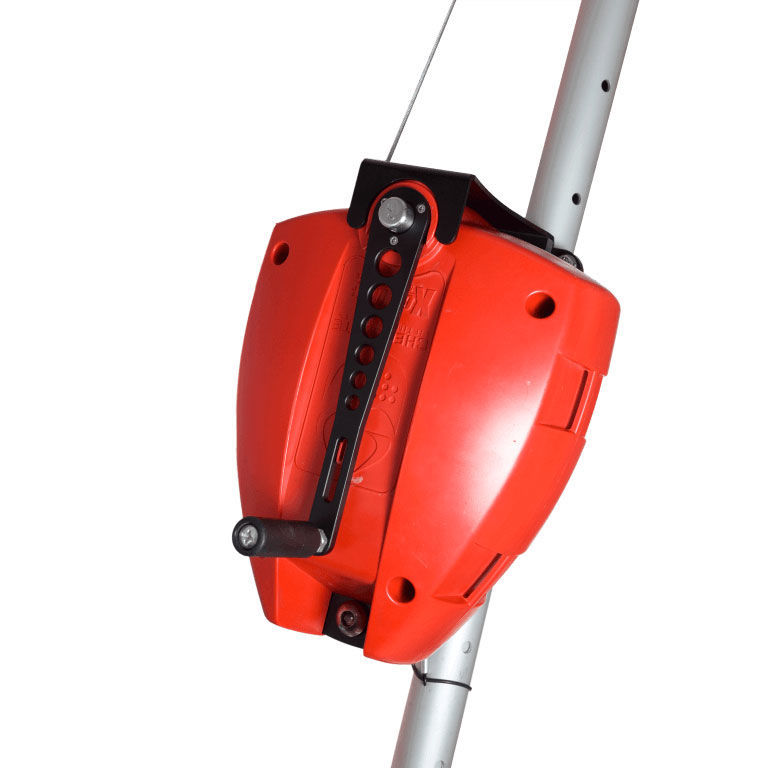

Guardian FABXLR Large Xcalibre Dyneema Rope with Recovery 30m/40m
The FABXLR functions as a standard Fall Arrest Block, but in the event of a fall the rewind/rescue mechanism can be engaged to raise and/or lower a fallen worker. Available with Dyneema cable or fibre rope made with Dyneema®, up to 35m metres (130ft) in length.
Product Features:
- Capacity Stainless steel max 35m (115ft)
- Stainless Steel max 35m (130ft)
- Fibre rope made with Dyneema®; max 40m (130ft)
- Galvanised Wire Rope 4.8mm nom dia 19 x 7 minimum breaking load 15kN
- Fibre rope Made with Dyneema®; 5mm dia. Min breaking load 27kN
- Stainless Steel Wire Rope (FABXLR CS) 5mm dia 7x19mm min breaking load 15kN
- Maximum Arresting Force < 6.0kN
- User Weight 136Kg Maximum (300lb)
Standards:
- EN 360
- ANSI Z359.14:2012
Dyneema®
- Dyneema® and Dyneema®, the world’s strongest fiber™ are trademarks of DSM. Use of these trademarks is prohibited unless strictly authorized.
Construction:
- External Housings PC/ABS High strength and rigidity UV stabilised
- ShaftT6 Aluminium hard anodised
- Chassis Hot Rolled Steel powder coated
- Pawls & Spindles Stainless steel, hardened
- Bearings Polyamide with PTFE Polytetrafluoroethene
- Swivel Load Indicating HookSteel swivel snap rated to 23kN
previous product code: FABXLR-30F
Products specifications
| Attribute name | Attribute value |
|---|---|
| Inertia Reel Type | Rescue/Recovery |
| Lifeline Material | Synthetic Rope |
| Inertia Reel Housing Material | Plastic |
