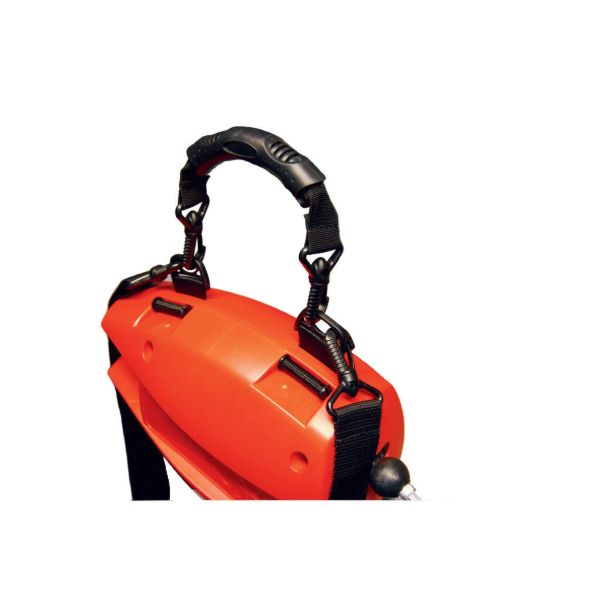

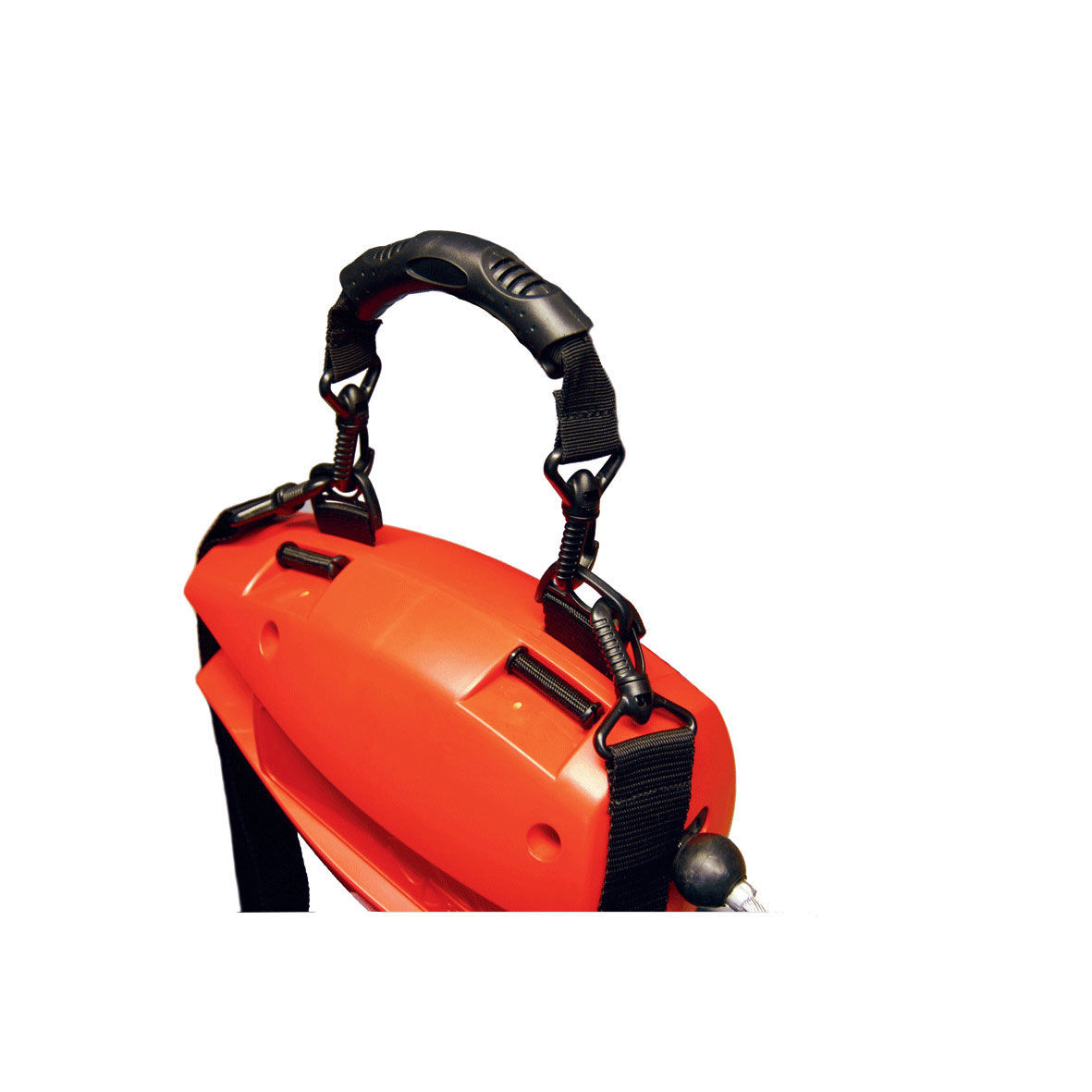

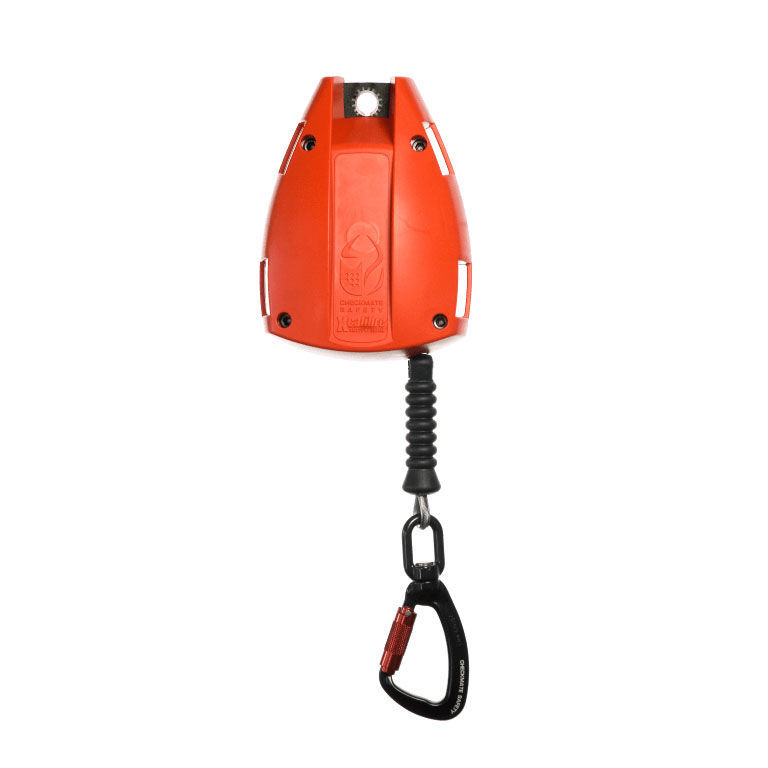

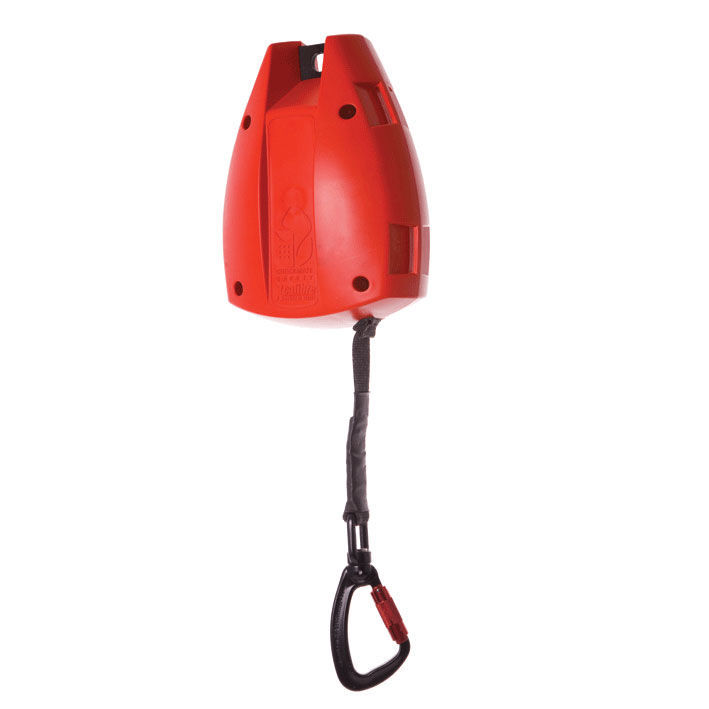

Guardian FABX1-8W Xcalibre with 8m Webbing Rope

The FABX1 is available with Webbing cable, fibre rope made with Dyneema® fibre rope or webbing made with Dyneema®. Up to 10 metres (33ft) in length the FABX1 offers lightweight handling, excellent servicability and exceptional performance.

Features:

• Top Connector 11mm alloy twist lock karabiner approved to EN362 & rated to 25kN (EN ONLY)
• Stainless Steel Wire Rope 5mm dia. 7 x 19 minimum breaking load 15kN
• Webbing made with Dyneema®; 20mm x 1.4mm min. breaking load 22kN
• Fibre RopeRope made with Dyneema®; 5mm dia. Min. breaking load 27kN
• Capacity Wire and Rope made with Dyneema®: 10m (33ft)
• Webbing: 8m (26ft)
• Maximum Arresting force Wire rope =4.4kN (nom)
• Webbing = 3.3kN (nom)
• Made with Dyneema® = 4.2kN (nom)
• Total Arrest distance Max 2.0m (EN) / 54” (ANSI)
• User Weight 136kg maximum (300lbs)



Standards:

• EN 360
• AS/NZS 1891.3.1997 (EN)
• ANSI Z359.14:2012 Class B
• OSHA 1910 &1926



Dyneema®

•  Dyneema® and Dyneema®, the world’s strongest fiber™ are trademarks of DSM. Use of these trademarks is prohibited unless strictly authorized.



Construction:

• External Housings PC/ABS High strength and rigidity UV stabilised
• Drum Polyamide 6 Glass Filled
• Chassis Hot Rolled Steel, Zinc plated black
• Pawl Plate & Ratchet Alloy T6 Hard anodised
• Pawls & Spindles Stainless steel, hardened
• Bearings Polyamide with PTFE Polytetrafluoroethene
• ShaftAl. Alloy T6 Hard anodised
• All Fixings Stainless steel
• Swivel HookAl. Alloy, Rated to 25kN (EN)
• Steel, Rated to 40kN (ANSI)
