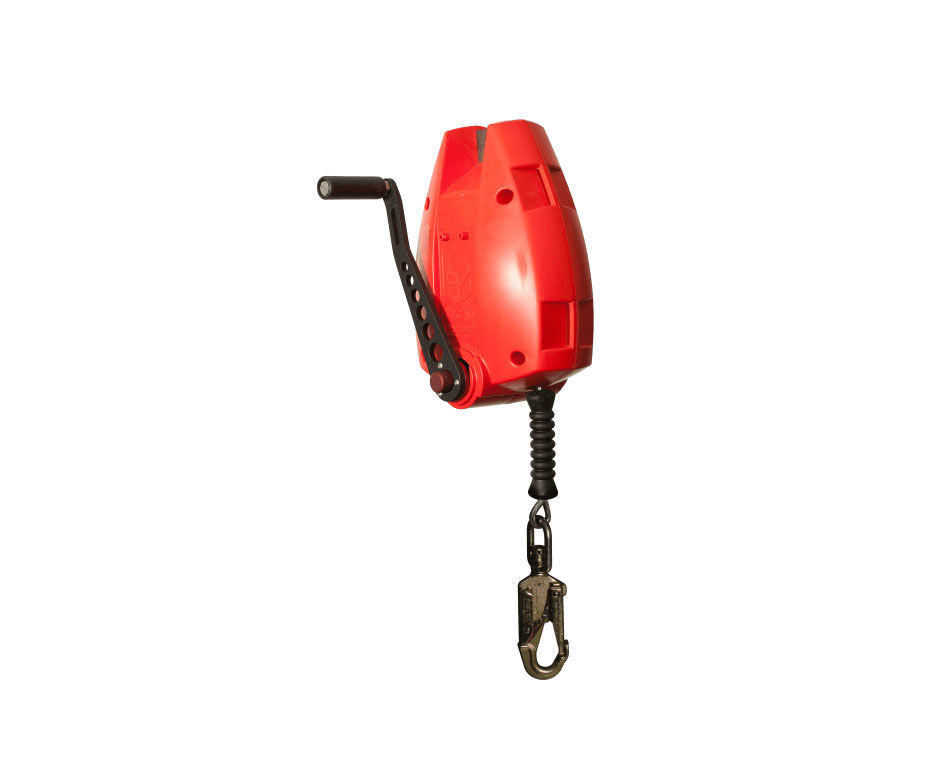

Guardian 18m Dyneema Rope Xcalibre with Recovery

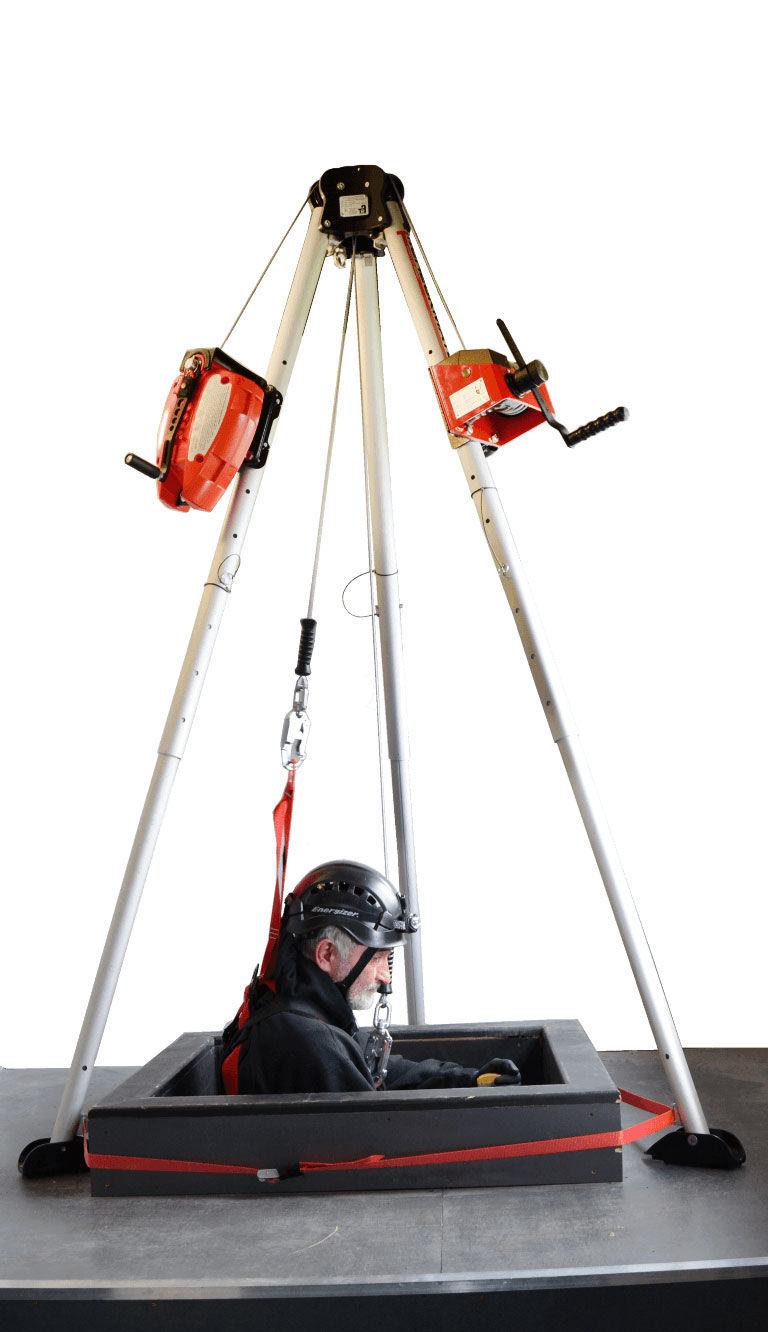

The FABXR functions as a standard Fall Arrest Block, but in the event of a fall, the rewind/rescue mechanism can be engaged to raise and/or lower a fallen worker.The FABXR is available with Dyneema cable or fibre rope made with Dyneema®. Up to 20 metres (66ft) in length the FABXR offers lightweight handling, excellent servicability and exceptional performance.

Features:

• Capacity Up to 18 m/60ft (NB Stainless steel option is 15m/50ft)
• Galvanised Wire Rope [FABXR C] 4.8mm nom dia 19 x 7 minimum breaking load 15kN
• Fibre rope [FABXR F] Made with Dyneema®; 5mm dia min breaking load 27kN
• Maximum Arresting Force<6.0kN
• User Weight 136Kg/300lb Maximum



Standards:

• EN 360
• ANSI Z359.14:2012 Class B
• EN 1496 A/B



Dyneema®

•  Dyneema® and Dyneema®, the world’s strongest fiber™ are trademarks of DSM. Use of these trademarks is prohibited unless strictly authorized.



Construction:

• External Housings PC/ABS High strength and rigidity UV stabilised
• Chassis Hot Rolled Steel, Zinc plated black
• Pawls Stainless steel, hardened
• ShaftAl. Alloy T6 Hard anodised
• Swivel Load Indicating Hook Alloy (EN) or Steel (ANSI) options
