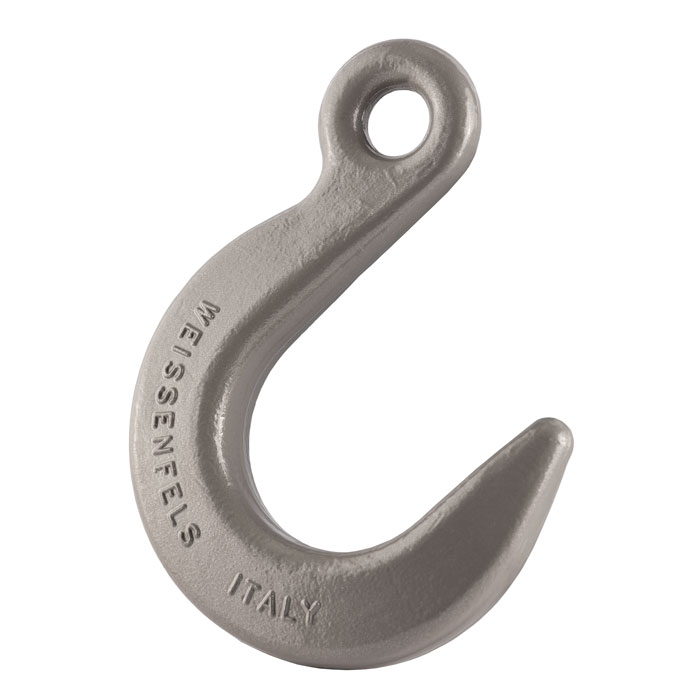

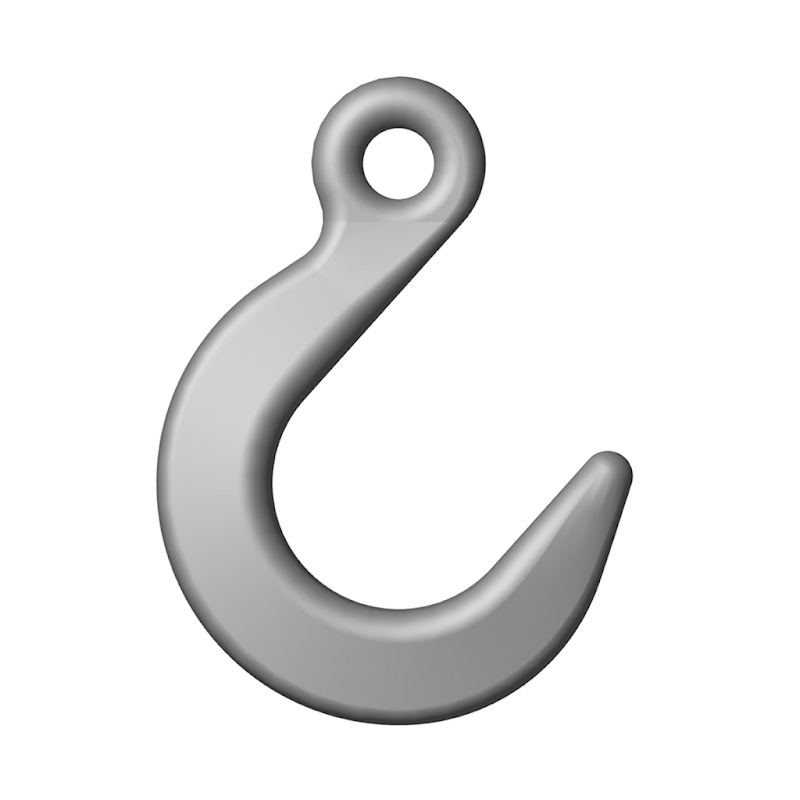

GT Lifting G10EFH8 Grade 10 Eye Type Foundry Hook

Meets the performance requirements of EN1677 - 1.
Can be certified in accordance with ASTM A 952.
Suitable for use with grade 10 chain and fittings.
Painted finish.
Alloy steel, quenched and tempered.
Proof load tested to 2.5 times the W.L.L.
Minimum breaking load is 4 times the W.L.L.
Marked with manufacturers identification, traceability mark, size and material grade

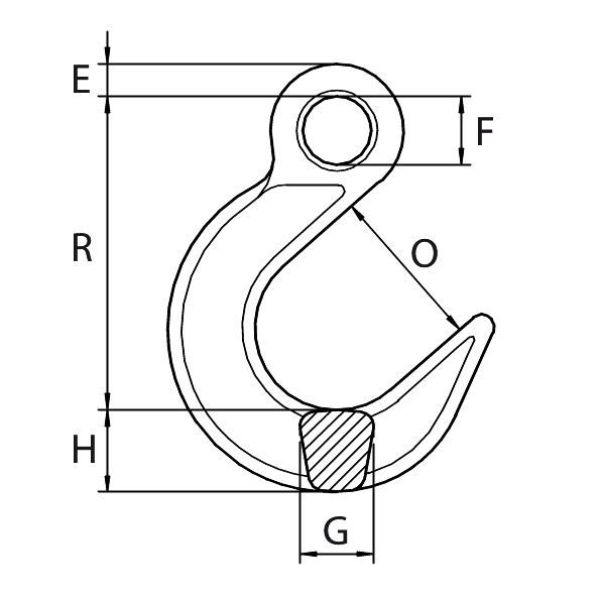

Dimensions:

Code	Part No	Chain Dia	E	F	G	H	O	R
		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
G10EFH8	FHE7-8	7-8	13.5	18	26	31	64	122.5
G10EFH10	FHE10	10	16	22	32	36	78	149
G10EFH13	FHE13	13	19	27	39	43	89	176
G10EFH16	FHE16	16	24	32	45	50	100	205
G10EFH20	FHE19-20	19-20	27	38	51	61	115	237

Chain Dia	Working Load Limit	Manufacturing Proof Force	Breaking Force	Weight
(mm)	(tonnes)	(kN)	(kN min)	(kg)
7-8	2.5	62.8	100	1.13
10	4	98.2	157	2
13	6.7	166	265	3.3
16	10	251	402	5.3
20	14	393	628	7.7
