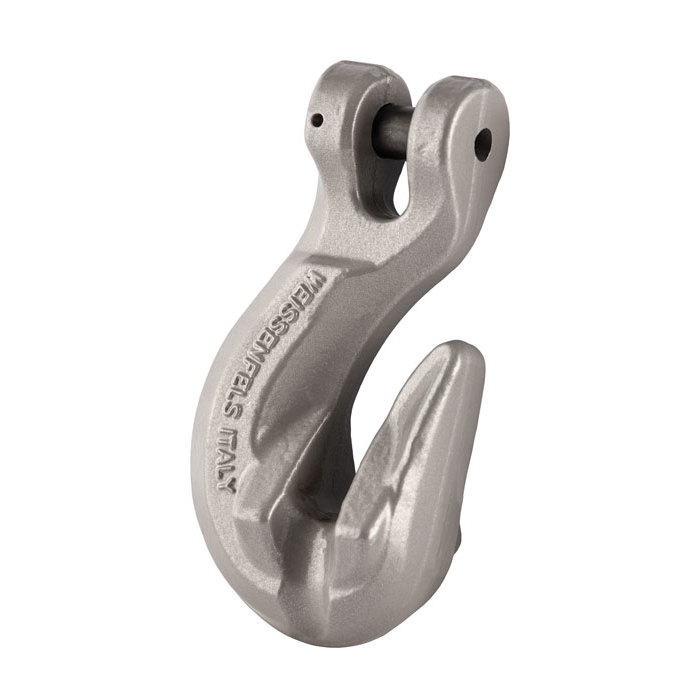

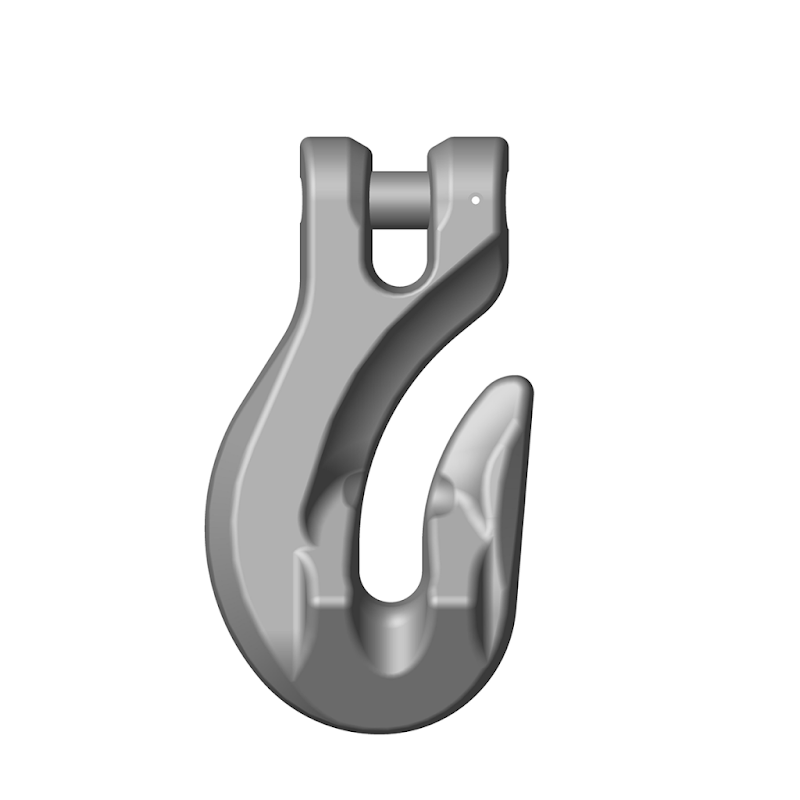

GT Lifting G10CGH6 GT Grade 10 Clevis Grab Shortening Hook

Meets the performance requirements of EN1677 - 1.
Can be certified in accordance with ASTM A 952.
Suitable for use with grade 10 chain and fittings.
Painted finish.
Alloy steel, quenched and tempered.
Clevis fitting enables direct connection to chain.
For correct safe use of the hook as a shortening device it must be assembled to the master link via 3 links of chain.
No reduction in W.L.L of the chain sling capacity if used as a shortening device.
Marked with manufacturers identification, traceability mark, size and material grade.
Spare clevis load and retaining pins available.

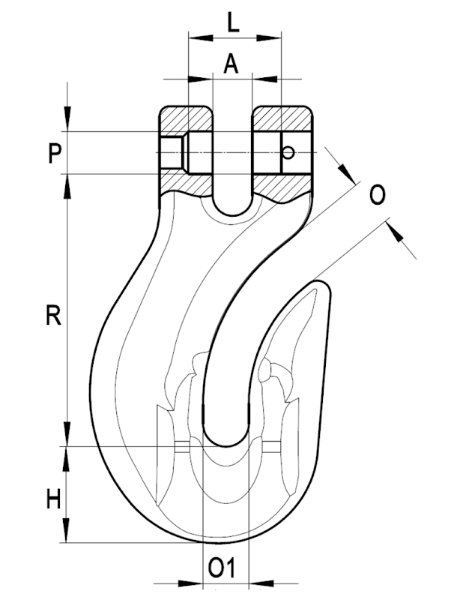

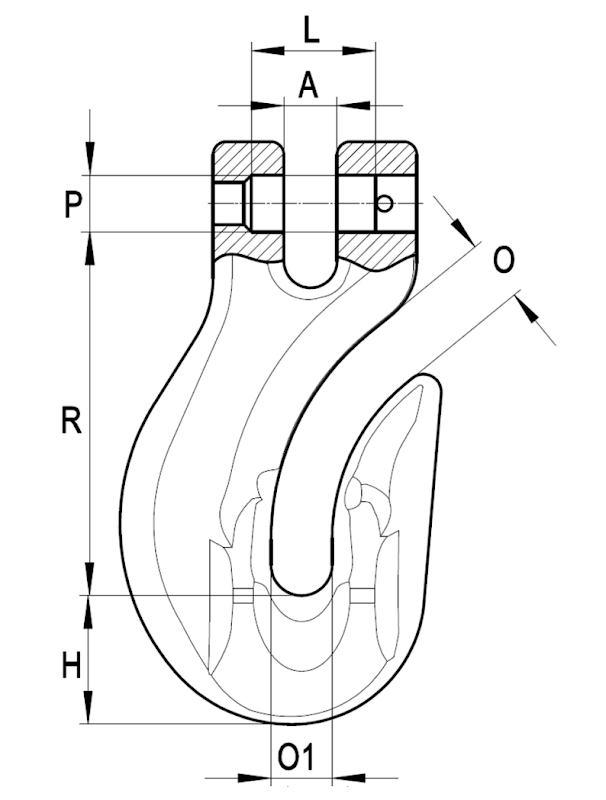

Dimensions:

Code	Part No	Chain Dia	A	H	O	O1	R	P x L
		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
G10CGH6	GSC6	6	7	17.5	7	7.5	51	7.4 x 16.5
G10CGH8	GSC7-8	7-8	9	23.5	9.5	10.5	66	9.6 x 23
G10CGH10	GSC10	10	11.5	29	12.5	13.5	82	12.5 x 29.5
G10CGH13	GSC13	13	15	39	16.5	15.5	107	16 x 37
G10CGH16	GSC16	16	18	46	22	20	132	20 x 52
G10CGH20	GSC19-20	19-20	23	57	26	24	155	24 x 73
G10CGH22	GSC22	22	25	63	29.5	27	170.5	27 x 71

Chain Dia	Working Load Limit	Manufacturing Proof Force	Breaking Force	Weight
(mm)	(tonnes)	(kN)	(kN min)	(kgs)
6	1.4	35.3	56.5	0.25
7-8	2.5	62.8	100	0.60
10	4	98.2	157	1.14
13	6.7	166	265	2.60
16	10	251	402	4.80
19-20	16	393	628	7.20
22	19	475	760	9.50
