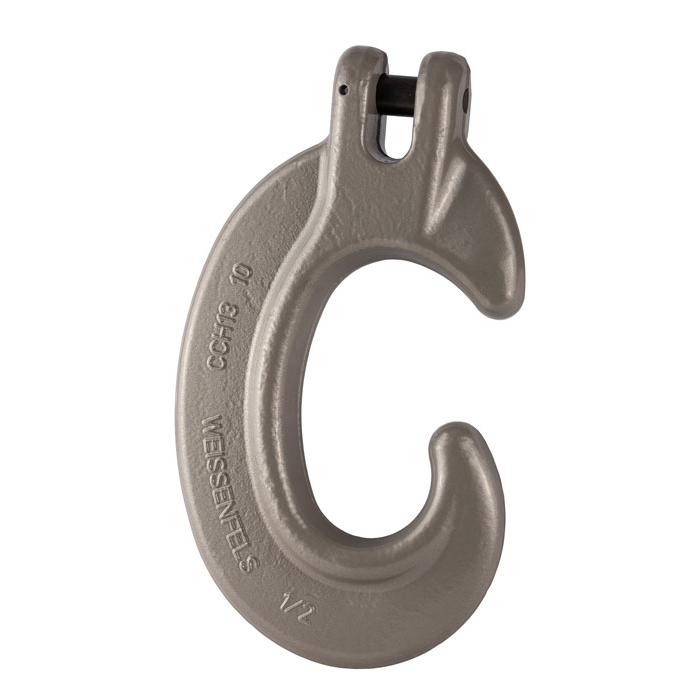

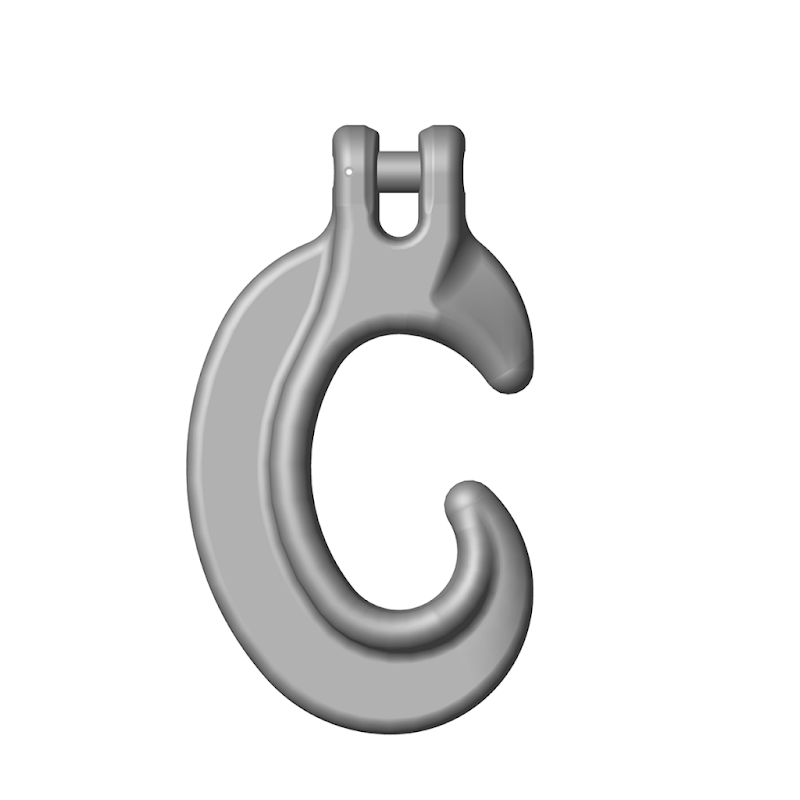

GT Lifting G10CCH8 Grade 10 Clevis C Hook

Meets the performance requirements of EN1677 - 1.
Can be certified in accordance with ASTM A 952.
Suitable for use with grade 10 chain and fittings.
Painted finish.
Alloy steel, quenched and tempered.
Marked with manufacturers identification, traceability mark, size and material grade.
Spare clevis load and retaining pins available.
Clevis fitting enables direct connection to chain.

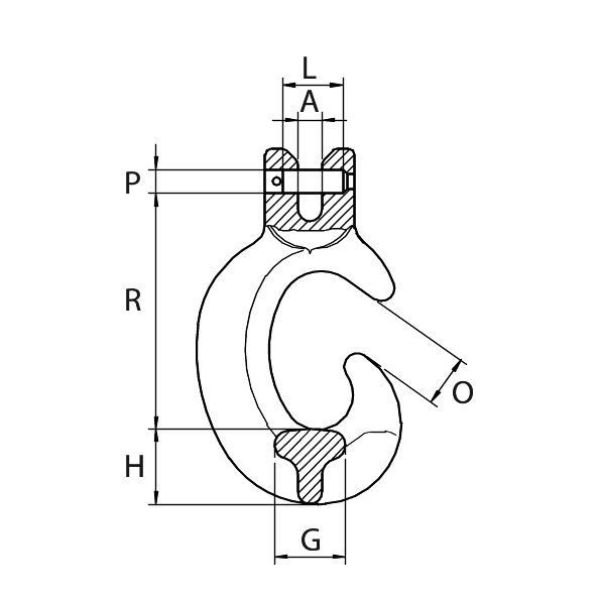

Dimensions:

Code	Part No	Chain Dia	A	G	H	O	R	P x L
		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
G10CCH8	CCH7-8	7-8	9.5	23	27.5	20	90	9.6 x 23
G10CCH10	CCH10	10	12	28	38.5	29	129	12.5 x 29.5
G10CCH13	CCH13	13	15	35	51	41	166	16 x 37

Chain Dia	Working Load Limit	Manufacturing Proof Force	Breaking Force	Weight
(mm)	(tonnes)	(kN)	(kN min)	(kg)
7-8	2.5	62.8	100	0.58
10	4	98.2	157	1.46
13	6.7	166	265	3.00
