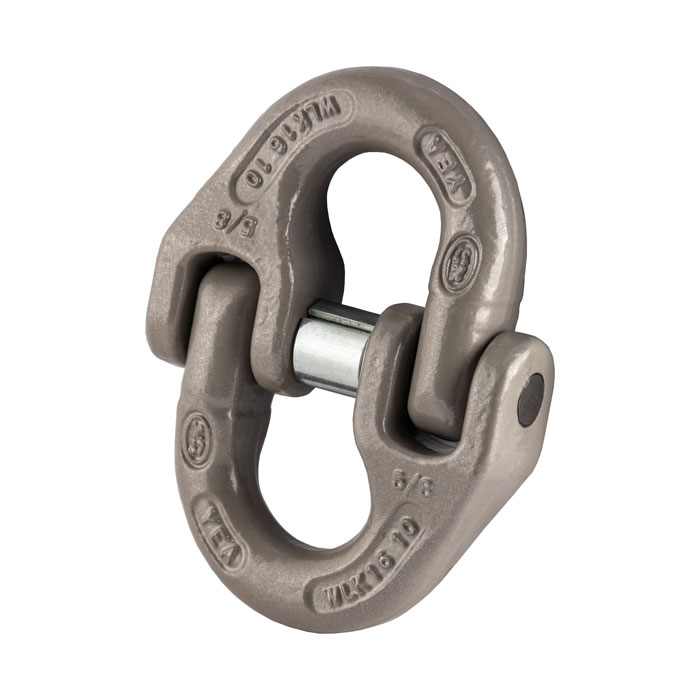

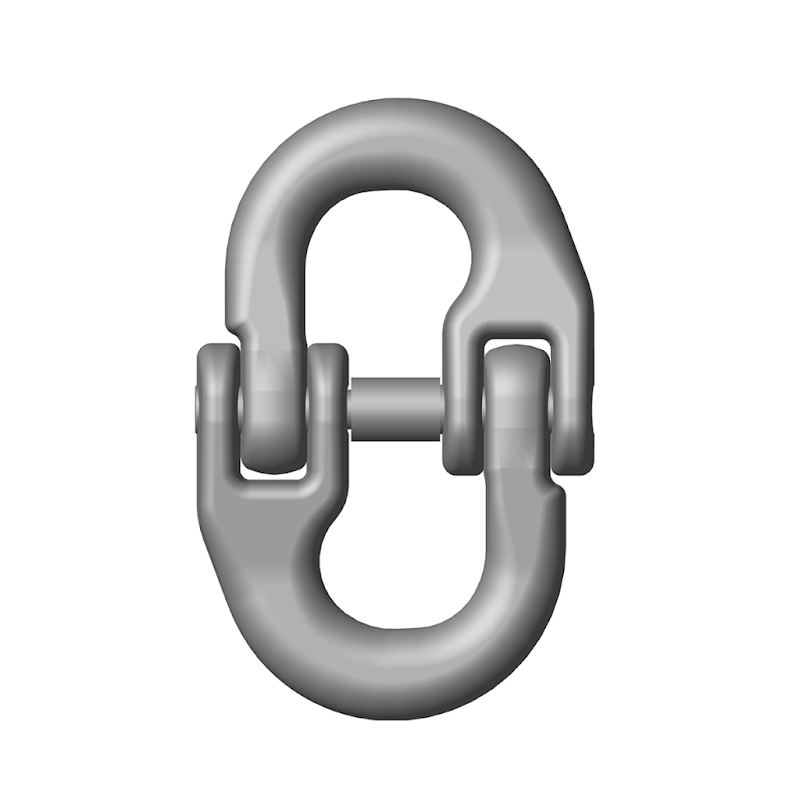

GT Lifting G10CC6 GT Grade 10 Component Connector
- Meets the performance requirements of EN1677 - 1.
- Can be certified in accordance with ASTM A 952.
- Suitable for use with grade 10 chain and fittings.
- Painted finish.
- Alloy steel, quenched and tempered.
- Designed for easy attaching of hooks and master links to other grade 8 and 10 chains and fittings.
- Marked with manufacturers identification, traceability code, size and material grade.

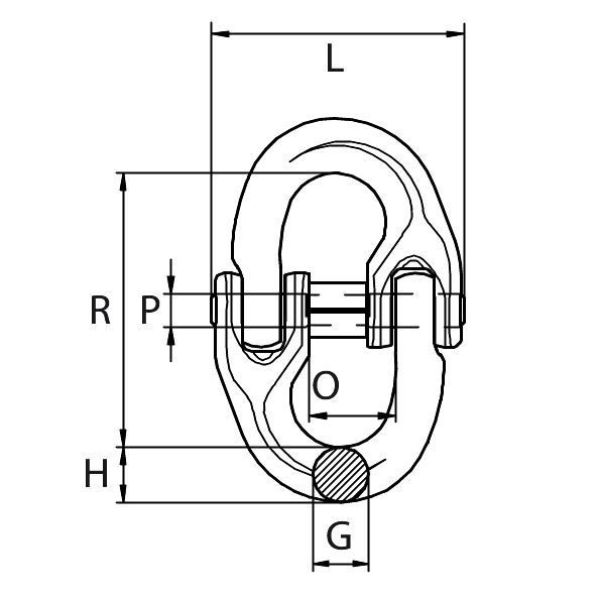

| Code | Part No | Chain Dia | D | H | G | O | R | P x L |
|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| G10CC6 | WLK6 | 6 | 13.9 | 7.8 | 7.6 | 14.0 | 44.0 | 4.8 x 39.0 |
| G10CC7 | WLK7 | 7 | 17.0 | 10 | 9.0 | 17.0 | 51.0 | 6.0 x 47.0 |
| G10CC8 | WLK8 | 8 | 18.2 | 11.5 | 10.0 | 18.0 | 61.5 | 6.3 x 53.0 |
| G10CC10 | WLK10 | 10 | 23.0 | 12.6 | 12.6 | 22.5 | 72.0 | 8.0 x 63.0 |
| G10CC13 | WLK13 | 13 | 27.6 | 19.0 | 16.7 | 27.5 | 88.0 | 10.0 x 79.0 |
| G10CC16 | WLK16 | 16 | 32.9 | 21 | 21.0 | 33.0 | 103.0 | 14.0 x 106.0 |
| G10CC20 | WLK19-20 | 19-20 | 41.5 | 29.5 | 23.5 | 41.5 | 115.0 | 16.0 x 123.0 |
| G10CC22 | WLK22 | 22 | 48.0 | 29.0 | 27.0 | 48.5 | 135.0 | 16.0 x 144.0 |
Technical Data:
| Chain Dia | Working Load Limit | Manufacturing Proof Force | Breaking Force | Weight |
|---|---|---|---|---|
| (mm) | (tonnes) | (kN) | (kN min) | (kg) |
| 6 | 1.4 | 35.3 | 56.5 | 0.07 |
| 7 | 1.9 | 48.1 | 77 | 0.12 |
| 8 | 2.5 | 62.8 | 100 | 0.19 |
| 10 | 4 | 98.2 | 157 | 0.34 |
| 13 | 6.7 | 166 | 265 | 0.73 |
| 16 | 10 | 251 | 402 | 1.43 |
| 19-20 | 16 | 393 | 628 | 2.45 |
| 22 | 19 | 475 | 760 | 3.21 |
