Grade 10 Cartec Single Base Weld-on Lifting Ring

Grade 10 high resistant alloy steel.
Black painted finish.
Minimum breaking load is 4 times the W.L.L.
Bracket must be aligned to the pulling direction (tolerance allowed +/- 10º).
Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.

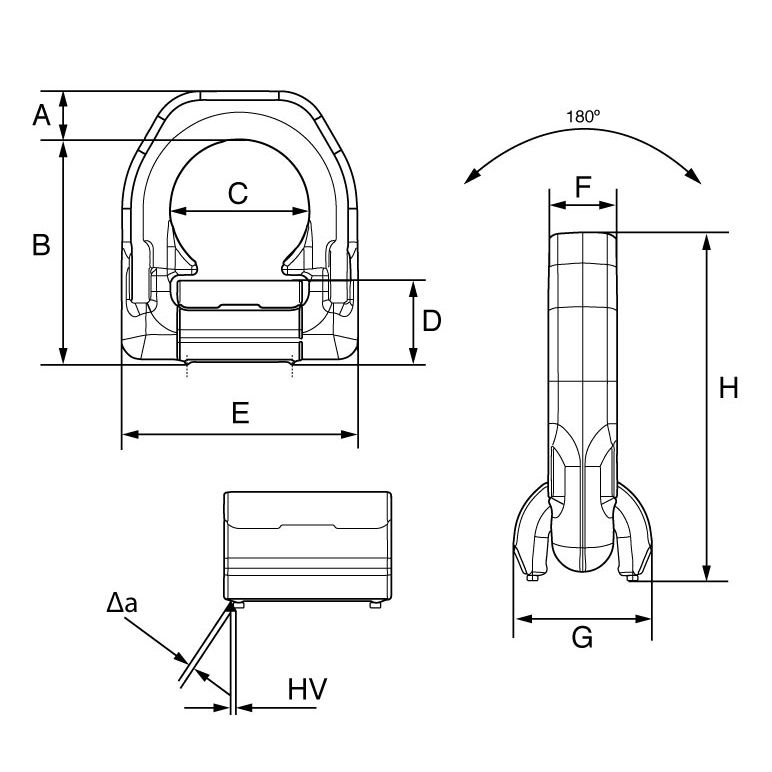

Full CAD support available upon request.

In particular applications the capacity which has to be used must be determined by the pulling inclination angle following the formula.

Lc = capacity needed per single bracket.

C = load to anchor.

δ = pulling inclination angle.

b = number of sling arms.

Worldwide Shipping

Place a purchase order, call or email
to get an international shipping quote

Seen this product elsewhere cheaper,
give us a call for our price match.
Subject to availability.

Call or email to speak to a member
of the technical team

Place a purchase order, call or email
to get an international shipping quote

Seen this product elsewhere cheaper,
give us a call for our price match.
Subject to availability.

Call or email to speak to a member
of the technical team

Call for pricing

Qty:
