Tractel FABA System A11

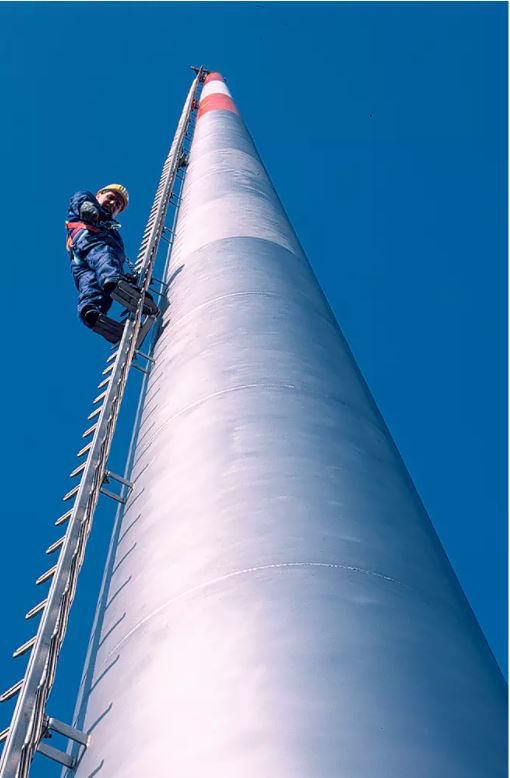

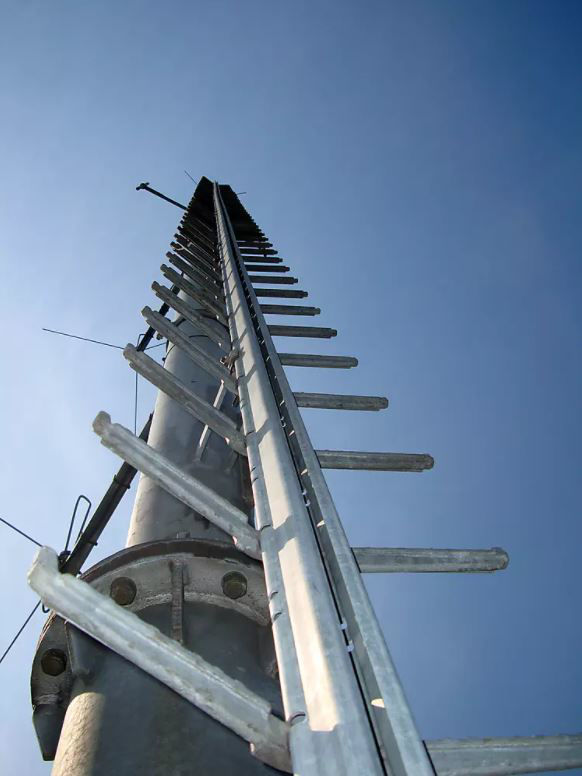

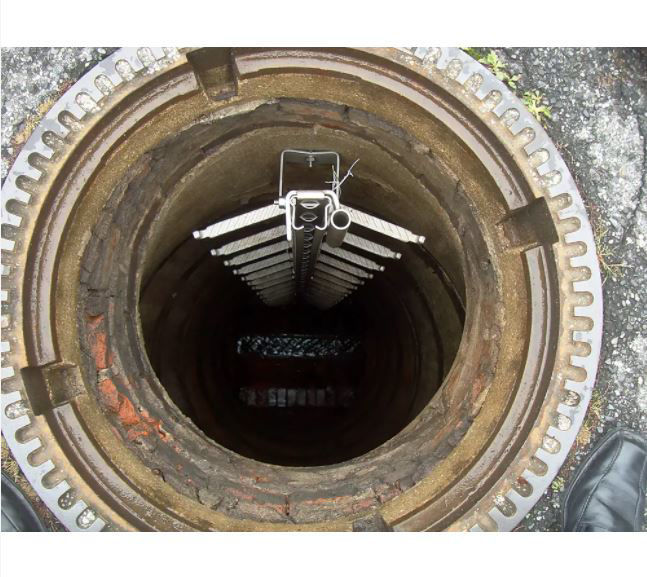

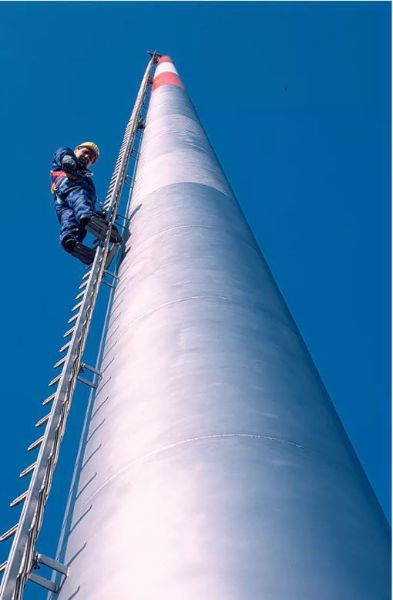

Introduced in 1965, the FABATM A11 System is the precursor to the vertical access safety
devices. Vertical fall arrest system in the form of a rail or ladder, complies with EN 353-1
standard. The slider can be inserted in either direction in the safety rail.

• Rail profile dimension: 68 x 56 x 2.8mm
• Material: Hot-dipped galvanised steel or stainless steel (1.4571)
• Version: Ladder with central upright or just a rail.
• Spacing in between stops: 140 mm
• Spacing in between rungs: 280 mm
• Rungs: Inclined forward and welded on the back of the rail.
• Ladder width: 408 mm
• Primary Length: 2800 mm
• Adjustment lengths: 1960, 1680, 1400 and 1120 mm
• Maximum distance between fixings: 1960 mm
